Construction winch

JK3T fast winch

1. The electric fast hoist is widely used for material lifting or leveling in construction, water conservancy, forestry, mining, wharf, etc. It can also be used as a supporting equipment for modern electric control automatic operation line; 2. This machine is characterized by high universality, compact structure, small volume, heavy lifting and convenient use and transfer; 3. The hydraulic brake is sensitive and durable; 4. The high frequency transmission gear is designed with helical teeth, with large bearing capacity, low noise and high accuracy; 5. Copper core motor has magnetic induction, high melting point, low loss, fast heat dissipation and high temperature, and is not easy to burn; 6. Anti rotation steel wire rope, galvanized surface, anti-corrosion and rust proof, durable.

Machine modelJK3T
Speed25/35m/min
Equipped with power15kW
Rope capacity200m
Drum size219*540-110mm
Wire rope diameter13/15mm
Operating Weight450kg
Base size1080*950mm
Overall dimensions1080*1080*600mm
Braking modeElectromagnetic/hydraulic

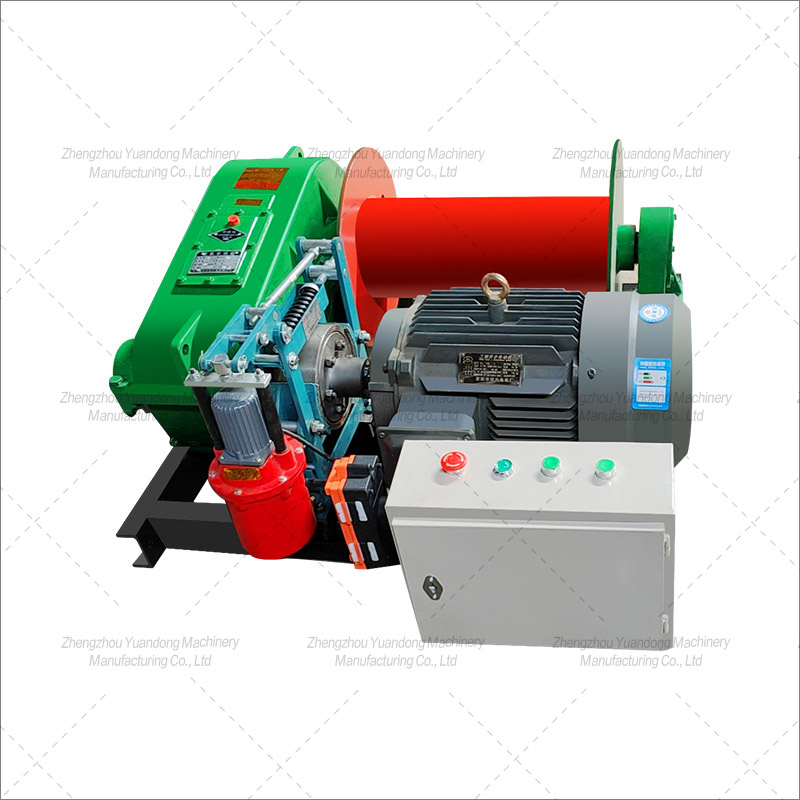

JK3T fast winch(圖1)
