Construction winch

JK2T electromagnetic fast winch

1. The fast hoist is mainly used for material lifting in construction, hauling heavy objects and as the main hoist on the crane. It is a special hoist for the derrick, gantry and lifting trolley, and is suitable for building, mining area lifting, civil construction works of the factory and small equipment installation; 2. High frequency gearbox gear adopts helical design, with large bearing capacity and high accuracy; 3. Thickened and reinforced large capacity steel wire rope reel, with large bearing capacity and no deformation; 4. The electromagnetic brake acts sensitively and quickly; 5. Copper core motor, strong power, high temperature resistance; 6. The motor shell is made of high-quality steel, and the internal parts are tightly assembled.

Machine modelJK2T
Speed25/35m/min
Equipped with power11kW
Rope capacity150m
Drum size180*400-70mm
Wire rope diameter11/12.5mm
Operating Weight280kg
Base size830*740mm
Overall dimensions980*980*550mm
Braking modeElectromagnetic/hydraulic

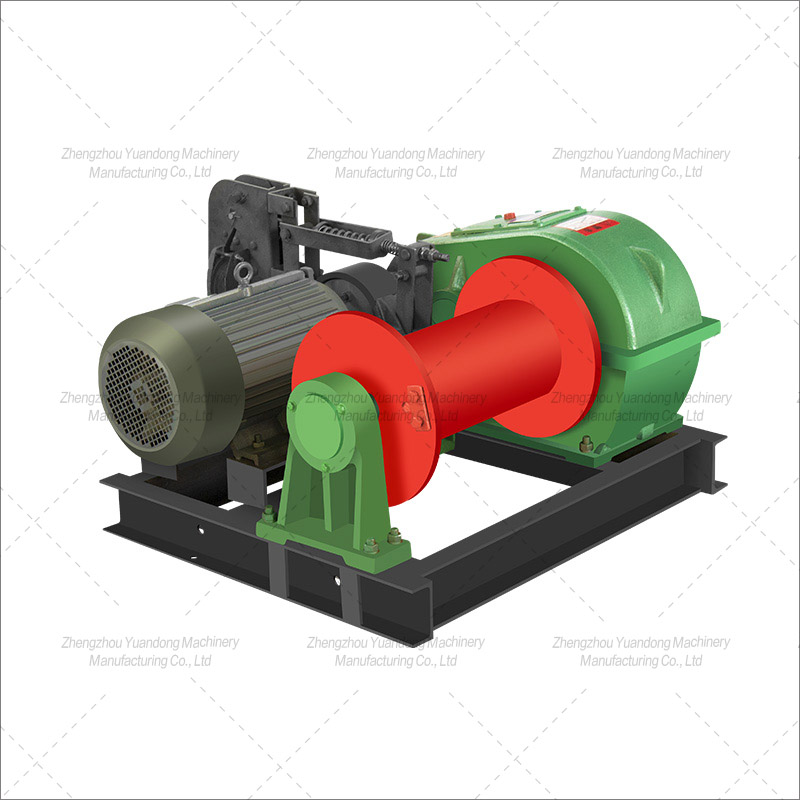

JK2T electromagnetic fast winch(圖1)
