Concrete mixing tank truck

8 square concrete mixing tank truck

The Concrete mixer is a special vehicle integrated with mixing and transportation, which always keeps the mixing drum rotating during transportation. Suitable for underground coal mines, reclamation construction, high-speed rail construction, urban road construction, and rural housing construction; Main specifications: 4m ³、 6m ³、 8m ³、 10m ³、 12m ³- 16m ³ Etc. 1. The mixing drum shell and blades made of special materials have higher wear resistance, good uniformity, fast feeding and discharging speed, and low residual rate 2. Chassis reinforcement design, with high steel plate strength, reduces the weight of the vehicle body, increases load capacity, and heavier tires, ensuring stable transportation and easy mixing and unloading of materials 3. The large volume design of the mixing bucket provides a large loading and mixing space, improving work efficiency 4. Mixing and shaping, high hardness, and flowability concrete

Product model: SH3042VEDCNZ1Maximum loading mass: 10205kg
Chassis model: SH1042VEDCNZ1Total vehicle mass: 4290kg
Wheelbase: 3300Overall dimensions of the vehicle (length, width, height): 5995 * 2230 * 2500mm
Track width (front): 1650Cylinder inclination angle: 13 °
Track width (rear): 1650Mixing volume: 8m3
Maximum driving speed: 80km/hFeed speed:≥3m3/min
Transmission: FastDischarge speed:≥2m3/min
Tire: 8.25R16 6PRDischarge residual rate:<1%
Engine model: YN38CRE1Hydraulic pump and motor: SUNNY/INTER Pump
Engine power: 95kwReducer: Rongjiao or Keyi
Emission standard: National VWater supply system: pneumatic water supply
Vehicle equipment mass: 2600kgWater tank capacity: 400L

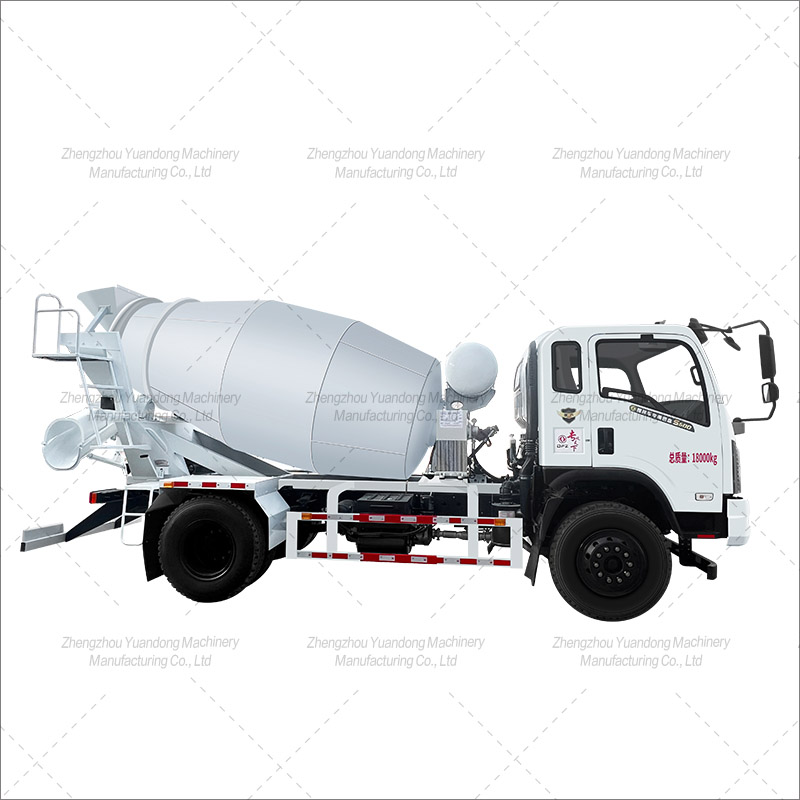

8 square concrete mixing tank truck(圖1)
