Concrete mixing tank truck

7 cubic meter concrete mixing tank truck

The Concrete mixer is a special vehicle integrated with mixing and transportation, which always keeps the mixing drum rotating during transportation. Suitable for underground coal mines, reclamation construction, high-speed rail construction, urban road construction, and rural housing construction; Main specifications: 4m ³、 6m ³、 8m ³、 10m ³、 12m ³- 16m ³ Etc. 1. The mixing drum shell and blades made of special materials have higher wear resistance, good uniformity, fast feeding and discharging speed, and low residual rate 2. Chassis reinforcement design, with high steel plate strength, reduces the weight of the vehicle body, increases load capacity, and heavier tires, ensuring stable transportation and easy mixing and unloading of materials 3. The large volume design of the mixing bucket provides a large loading and mixing space, improving work efficiency 4. Mixing and shaping, high hardness, and flowability concrete

Product model: DYQ5161GJBD5ABMaximum loading mass: 7855kg
Chassis model: DYQ1161D5AATotal vehicle mass: 16000kg
Wheelbase: 3700Overall dimensions of the vehicle (length, width, height): 7330 * 2480 * 3540mm
Track width (front): 1810Simplified inclination angle: 13 °
Track width (rear): 1800Mixing volume: 7m3
Maximum driving speed: 90km/hFeed speed:≥3m3/min
Transmission: FastDischarge speed:≥2m3/min
Tire: 900R20Discharge residual rate:<1%
Engine model: YC4S140-50Night pressure pump and motor: SUNNY/INTER Pump
Engine power: 103kw (140 horsepower)Reducer: Rongjiao or Keyi
Emission standard: National VWater supply system: pneumatic water supply
Vehicle equipment mass: 7955kgWater tank capacity: 400L

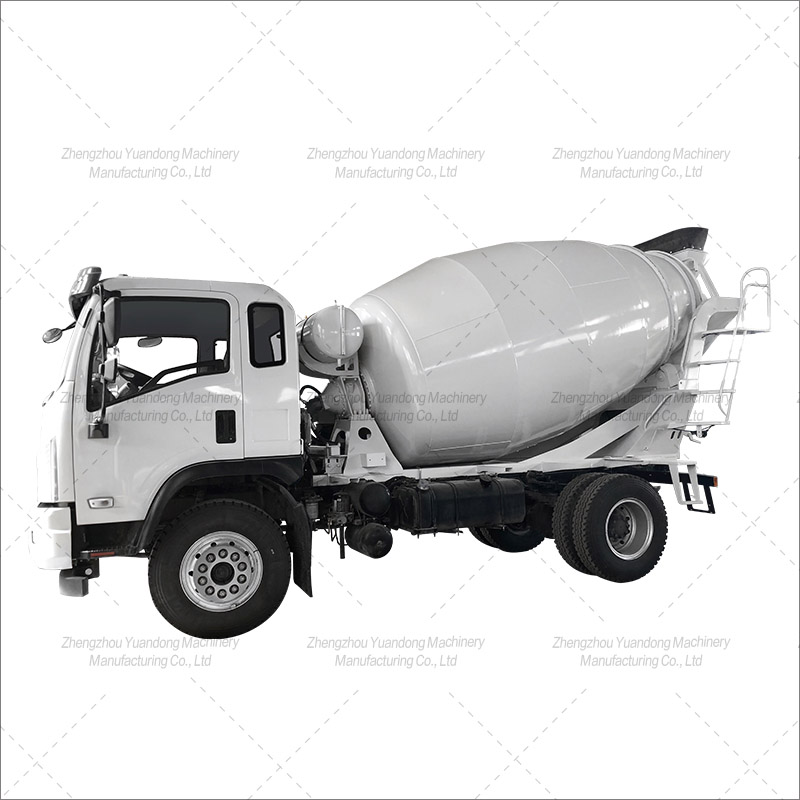

7 cubic meter concrete mixing tank truck(圖1)
