Sprayer

511 shotcrete machine

The spraying machine is suitable for the spraying range: cement mortar, putty powder, paint, latex paint, real stone paint, thermal insulation mortar, waterproof material, fireproof material, thermal insulation material, sound-absorbing material and other water-soluble materials 1. Adopt full copper clad national standard motor with stable performance. Reject any non-standard aluminum-clad motor 2. The connection between the spray gun and the feeding tube can be rotated for easy operation. 3. High construction efficiency and good quality. And small size, easy to carry on-site, 4. The sealant sleeve is made of black rubber, which is wear-resistant and anti-corrosion, and adds a protective umbrella to the equipment.

model511 diesel sprayer
power pressure8mpa
power output18 hp
Spray area200m²/h
conveying distance30m
delivery flow3m³/h
Hopper capacity100L
Maximum passing particles10mm
Maximum vertical height can be compressed25m
Maximum parallel length can be compressed50m
Dimensions180*58*95cm
machine weight300kg

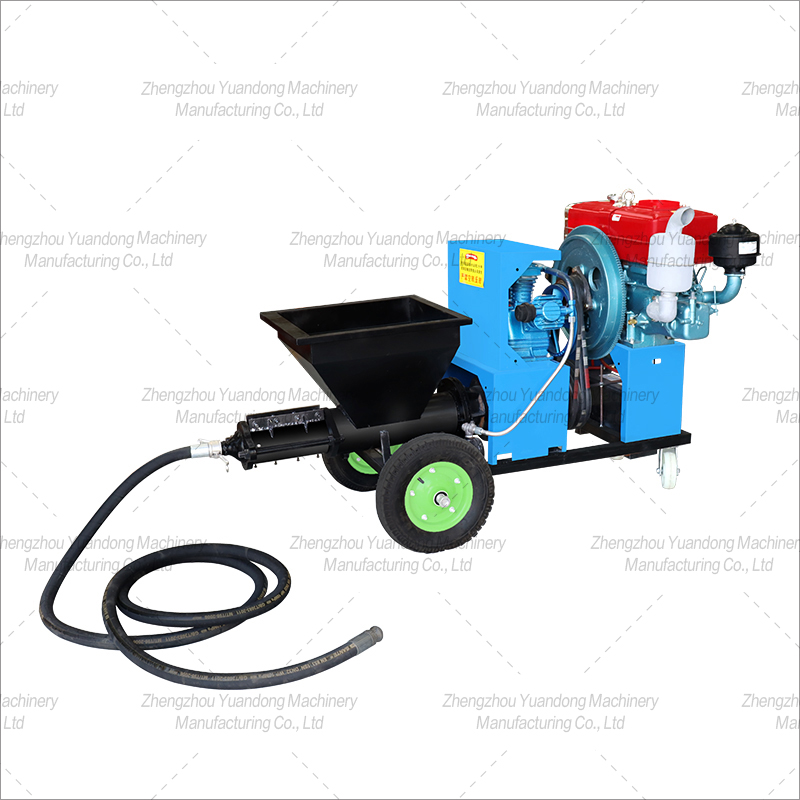

511 shotcrete machine(圖1)

model511 Electric Shotcrete Machine
Voltage380v
Motor Power7.5kw
Spray area200m²/h
Air pump power2.2kw
delivery flow3m³/h
work pressure5-8mp
Maximum passing particles5mm
Maximum vertical height can be compressed25m
Maximum parallel length can be compressed50m
Dimensions170*60*110cm
machine weight300kg

511 shotcrete machine(圖2)
