Your location : Homepage > Product > Floor machinery > Hand trowel
Hand trowel

100 type Jiezhou hand-held trowel

The series of walk-behind trowels are easy to operate, and the concrete surface processed by this machine is smoother and flatter, which can greatly improve the compaction of the construction surface. Widely used in high-standard large-area construction floors. 1. The unique handle structure and height-adjustable handle make the operator comfortable to operate and reduce fatigue; 2. The whole machine is heavy in weight, low in center of gravity, easy and comfortable to operate durable. 4. The unique design of the composite blade can perfectly realize the dual functions of the disc and the polishing blade. 5. Optional parts: lifting hook to facilitate the safe transportation of the machine.

Product name100 type Jiezhou hand-held trowel
Machine weight138kg
DimensionsL1820*W945*H980mm
Supporting powerFour-stroke air-cooled gasoline engine
Working diameter915mm
Maximum output power4.0-4.2kw (5.5-5.7hp)
Rotating speed70-140rpm
Maximum speed3600rpm
Fuel tank capacity3.6

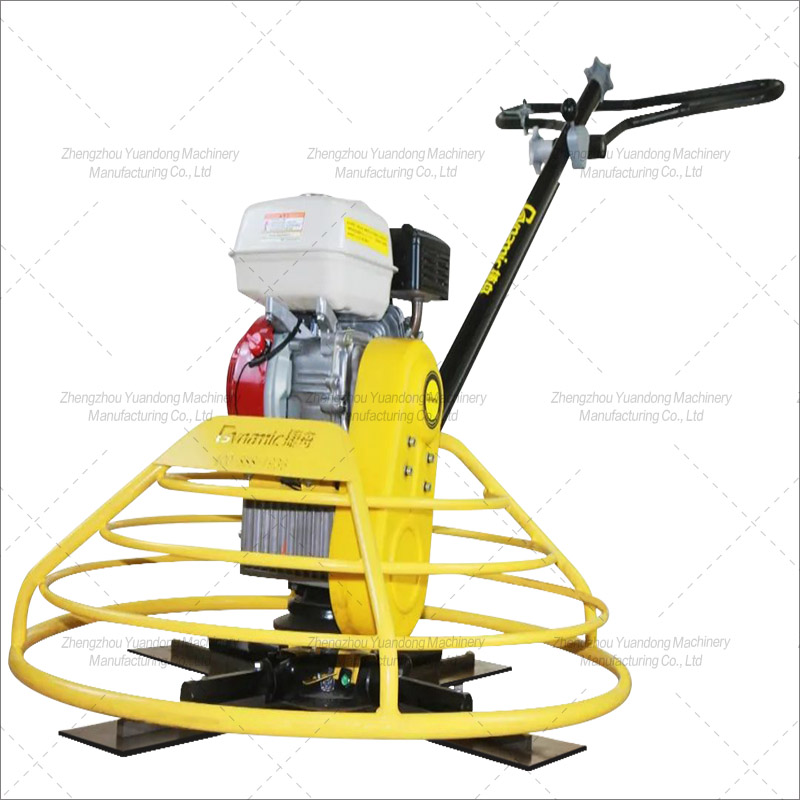

100 type Jiezhou hand-held trowel(圖1)
