Construction winch

JM2T winch

1. The winch can be used alone or as a component of hoisting, road building, mine hoisting and other machinery. It is widely used because of its simple operation, large amount of rope winding and convenient displacement. 2. High versatility, compact structure, small size, light weight, heavy lifting, convenient use and transfer, it is widely used in building, water conservancy, forestry, mining, wharf and other material lifting or level dragging, and can also be used as supporting equipment for modern electric control automatic operation line; 3. Adopt electromagnetic brake, fast braking and sensitive response; 4. Copper core motor, good conductivity and heat conduction, strong power; 5. The whole machine has a compact structure, and the thickened channel steel base enhances the stability of the machine.

Machine modelJM2T
Speed12/35m/min
Equipped with power11kW
Rope capacity200m
Drum size180*50-85mm
Wire rope diameter11/12.5mm
Operating Weight340kg
Base size855*950mm
Overall dimensions1050*980*550mm
Braking modeElectromagnetic/hydraulic

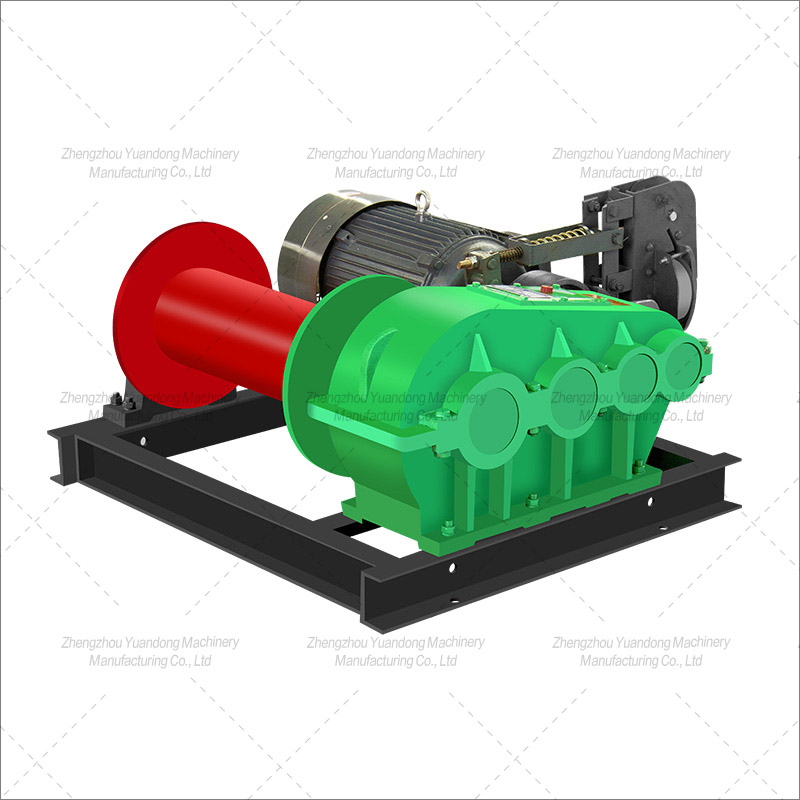

JM2T winch(圖1)
