Construction winch

JKO.5T fast winch

1. Widely used in building, water conservancy, forestry, mining, wharf and other material lifting or horizontal drag, can also be used as supporting equipment for modern electric control automatic operation line; 2. This machine has the advantages of large bearing capacity, stable and reliable hoisting, convenient movement, and wide operating speed range; 3. Precision casting gearbox, made of cast steel, with high transmission rate, large bearing power and strong impact load resistance; 4. Thickened and reinforced steel wire rope reel has large bearing capacity and is not easy to deform; 5. Copper core motor has high magnetic induction, high melting point and low loss, and it is not easy to burn the machine when the heat sink is enlarged to work for a long time.

機器(qì)型号JK0.5T
速度20m/min
配備動力3kW
容繩量100m
滾筒尺寸90*300-50mm
鋼絲繩直徑6.3/7.7mm
整機重量95kg
底座尺寸580*520mm
整機尺寸680*600*400mm
制(zhì)動形式電(diàn)磁/液壓

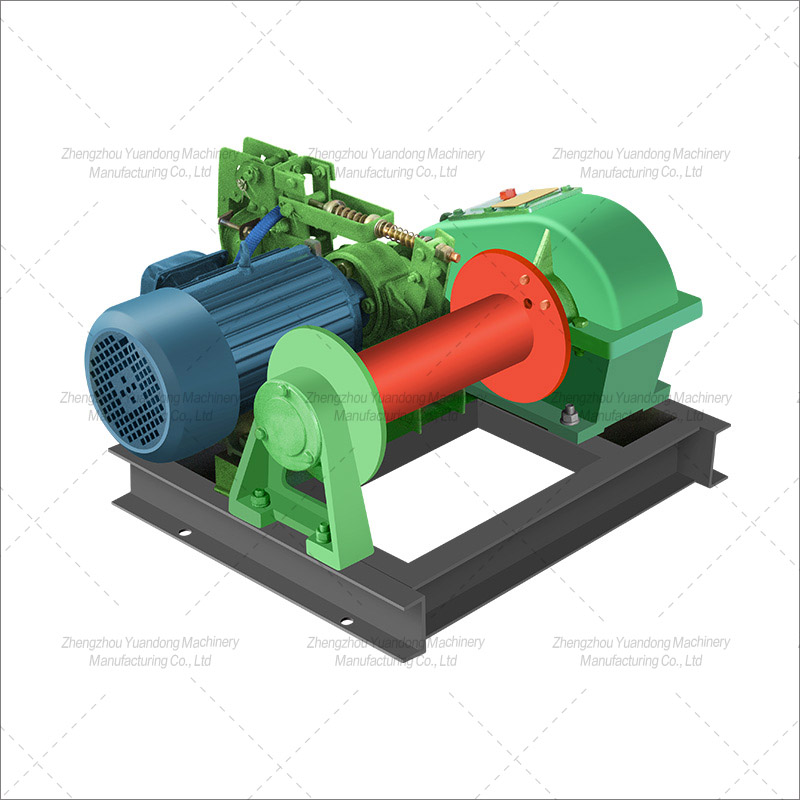

JKO.5T fast winch(圖1)
