Concrete mixing tank truck

5 square concrete mixing tank truck

The Concrete mixer is a special vehicle integrated with mixing and transportation, which always keeps the mixing drum rotating during transportation. Suitable for underground coal mines, reclamation construction, high-speed rail construction, urban road construction, and rural housing construction; Main specifications: 4m ³、 6m ³、 8m ³、 10m ³、 12m ³- 16m ³ Etc. 1. The mixing drum shell and blades made of special materials have higher wear resistance, good uniformity, fast feeding and discharging speed, and low residual rate 2. Chassis reinforcement design, with high steel plate strength, reduces the weight of the vehicle body, increases load capacity, and heavier tires, ensuring stable transportation and easy mixing and unloading of materials 3. The large volume design of the mixing bucket provides a large loading and mixing space, improving work efficiency 4. Mixing and shaping, high hardness, and flowability concrete

Model: 5 square tank truckFuel type: diesel
Power take-off: full powerChassis emission standards: GB3487-2005 National VI, GB17691-2018
Engine: Yuchai Power 200 horsepowerRemote control central locking, original air conditioning, airbag seats
Transmission: Fast 8-speed high and low gearsElectric glass, multifunctional steering wheel, central control screen+reverse camera
Wheelbase: 3600mmOuter wheel width: 2450mm
Tire: 1000R20Front and rear axles: front 3.6T, rear reinforced 10T with differential lock
Driver's cab: DongfengExternal dimensions: 7225 * 2450 * 3600mm
Curb weight: 7900KGTotal mass: 18000KG
Plunger motor: SUNNYPlunger pump: SUNNY Radiator: Hengsheng
Head: 10mmTank body: 500 high wear-resistant and high-strength plate
Water supply system: three water pipesWater supply method: air pressure

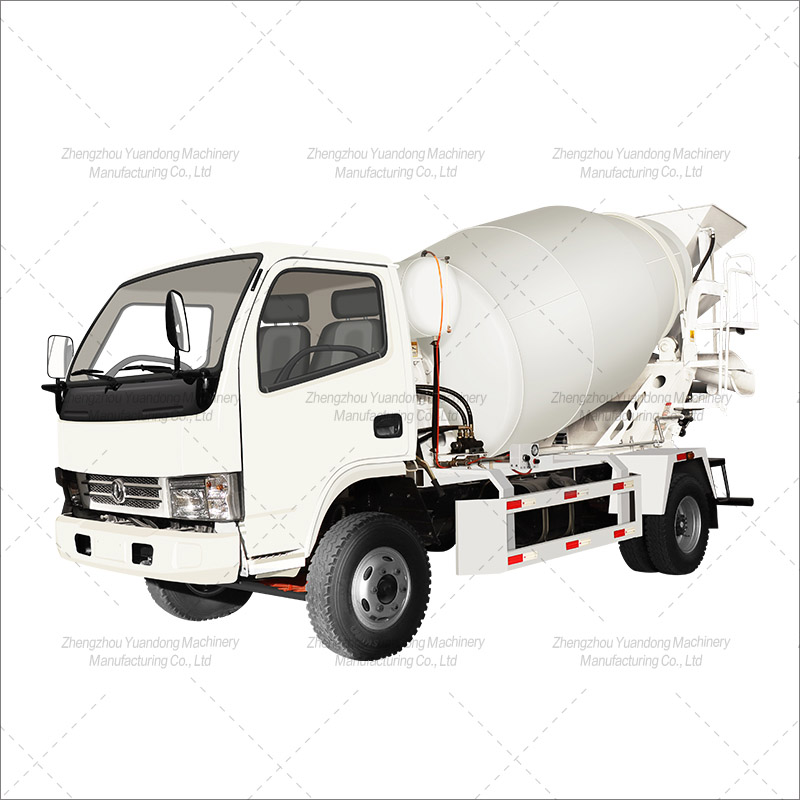

5 square concrete mixing tank truck(圖1)
