spraying machine

HSP-5 wet spraying machine

Wet shotcrete machine is a type of anchor shotcrete support equipment with good comprehensive performance in reducing dust, reducing rebound, and saving materials both domestically and internationally. Wet shotcrete machine is a widely used construction equipment in engineering construction. It uses compressed air or other power to transport a certain proportion of mixed materials through pipelines and spray them at high speed to the sprayed surface for solidification and hardening, forming a concrete support layer. The shotcrete technology is simple, the construction cost is low, the adaptability is wide, the work dust is small, the spraying rebound is small, the working environment is protected, and raw materials are saved Improving the quality of the spray layer has played an important role in various building areas.

ModelHSP-5 Wet SprayerHSP-7 Wet Sprayer
production capacity3.5m³/h5-7m³/h
Maximum conveying distance30/20m(Vertical/Horizontal)30/20m(Vertical/Horizontal)
Maximum aggregate sizeφ15mmφ15mm
Inner diameter of conveying hoseφ51mmφ57/64mm
Working pressure0.3-0.6Mpa0.4-0.6Mpa
Air consumption15-20m³/min15-20m³/min
voltage380v380v
Overall weight700kg800kg

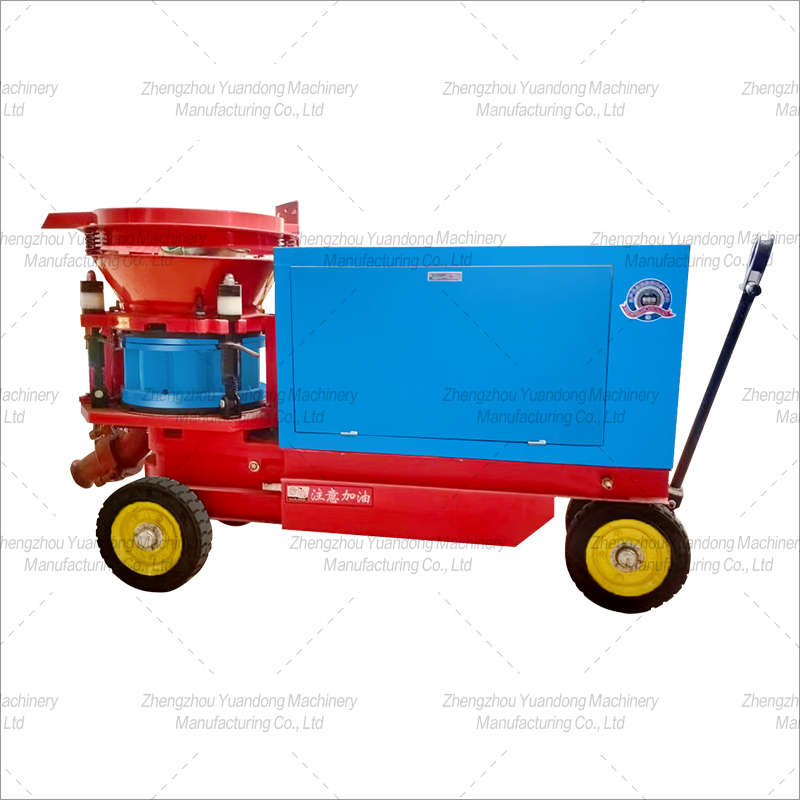

HSP-5 wet spraying machine(圖1)
