Jaw crusher

PE type jaw crusher

The PE jaw crusher is a compound pendulum jaw crusher. The series of crushers produced have the characteristics of large crushing ratio, uniform product particle size, simple structure, reliable operation, easy maintenance, and economic operating costs. The PE jaw crusher has been widely used in many departments such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industry, crushing various materials with a compressive strength of 350 MPa and a diameter of 500-1800mm. PE jaw crusher has a high crushing ratio, high output, and easy maintenance! It is also relatively convenient to use.

産品型号PE-250X400PE-400X600PE-500X750PE-600X900PE-750X1060PE-900X1200PE-1000X1200PE-1200X1500
feed opening250x400mm400x600mm500x750mm600x900mm750x1600mm900x1200mm1000x1200mm1200x1500mm
Maximum feed particle size210mm340mm425m500mm630mm750mm850mm1020mm
Adjustment range of discharge port20-60mm40-100mm50-100mm65-160mm80-140mm95-165mm195-265mm150-300mm
processing capacity5-20t/h16-60t/h40-110t/h50-180t/h110-320t/h220-132kw315-500t/h400-800t/h
Eccentric shaft speed300r/min275r/min275r/min250r/min250r/min200r/min200r/min180r/min
power15kw30kw55kw75kw90-110kw110-132kw110-132kw160-220kw
total weight2.8t7t12t17t29t52t55t100.9t
Overall dimensions1300x1090x1270mm1730x1730x1630mm1980x2080x1870mm2190x2206x2300mm2660x2430x2800mm3380x2870x3330mm3480x2876x3330mm4200x3300x3500mm

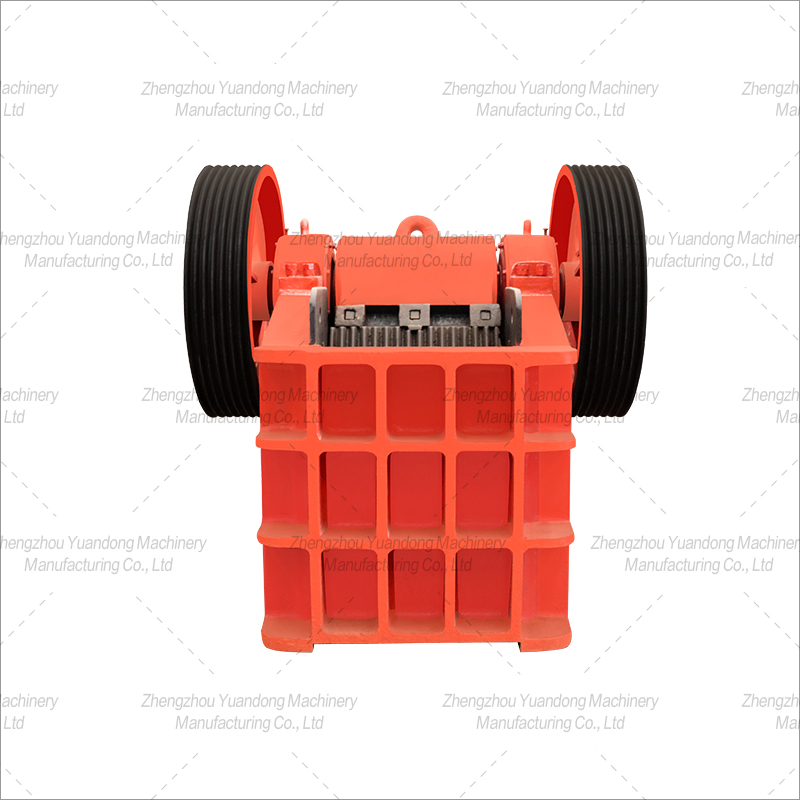

PE type jaw crusher(圖1)

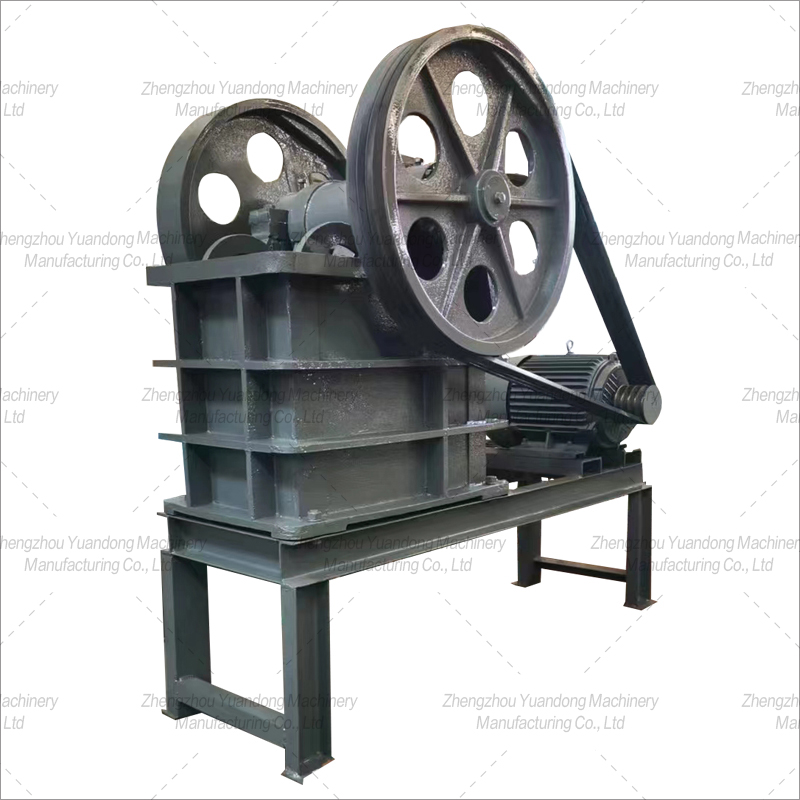

PE type jaw crusher(圖2)

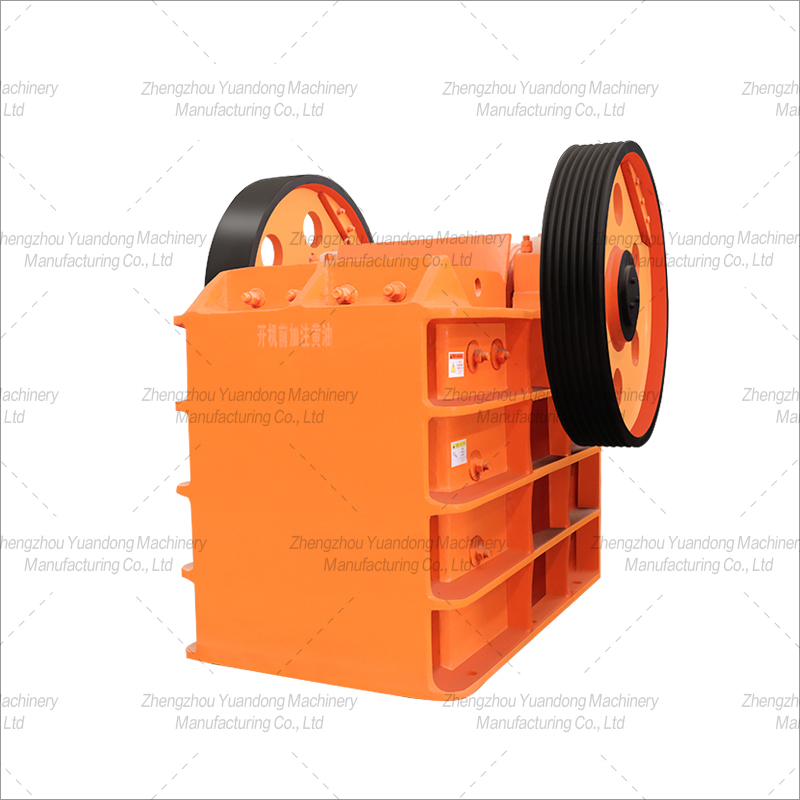

PE type jaw crusher(圖3)

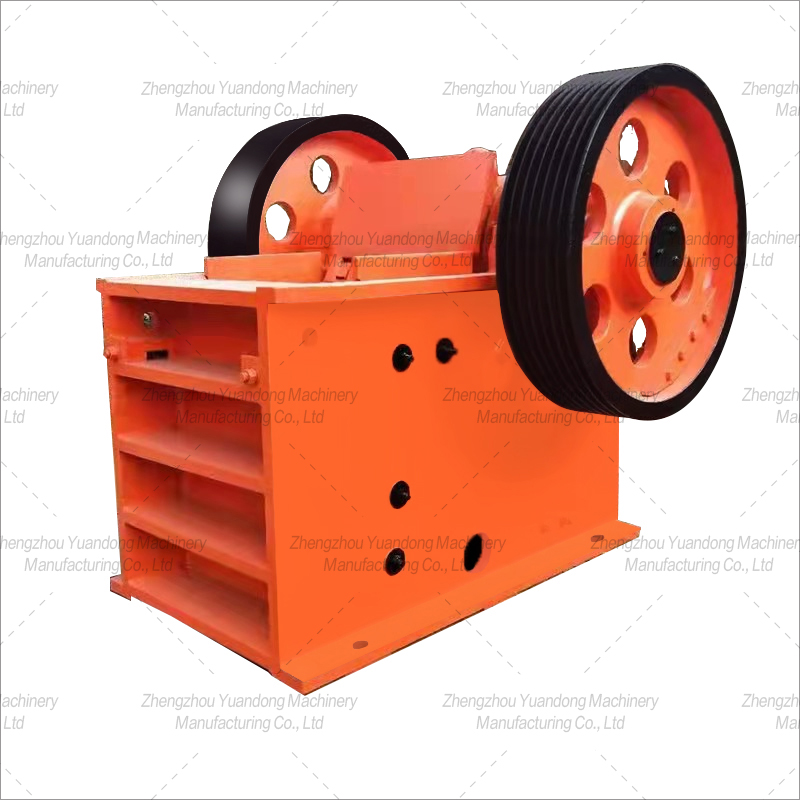

PE type jaw crusher(圖4)
