Grouting pump

BW-300 three-cylinder two-speed grouting pump

modelBW-300 three-cylinder two-speed grouting pump
Maximum delivery volume0-18m3/h
mortar ratio1:1
Maximum grouting pressure0-18Mpa
Mortar horizontal conveying distance200-500m
Mortar vertical conveying distance60-100m
Mortar horizontal conveying distance100-250m
Mortar vertical conveying distance30-60m
Motor Power18.5-22kw
Total Weight760kg
Dimensions1850X800X1100mm

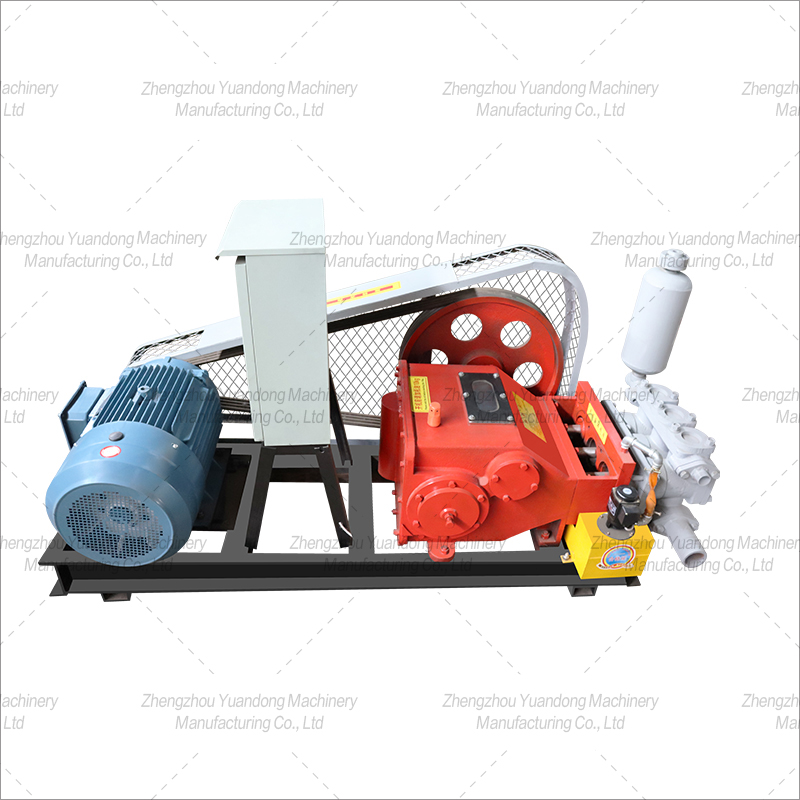

BW-300 three-cylinder two-speed grouting pump(圖1)

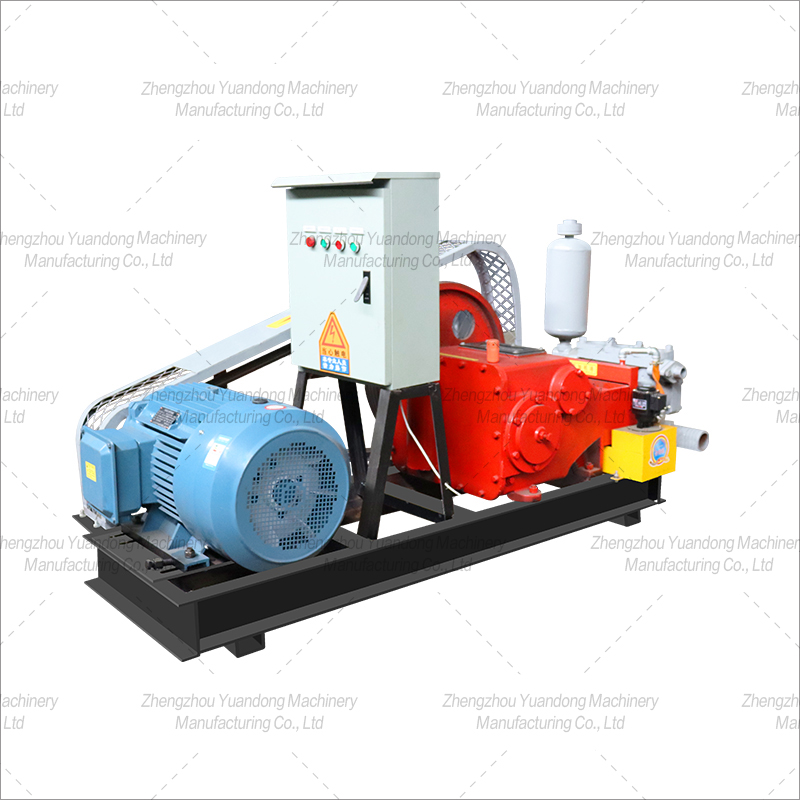

BW-300 three-cylinder two-speed grouting pump(圖2)

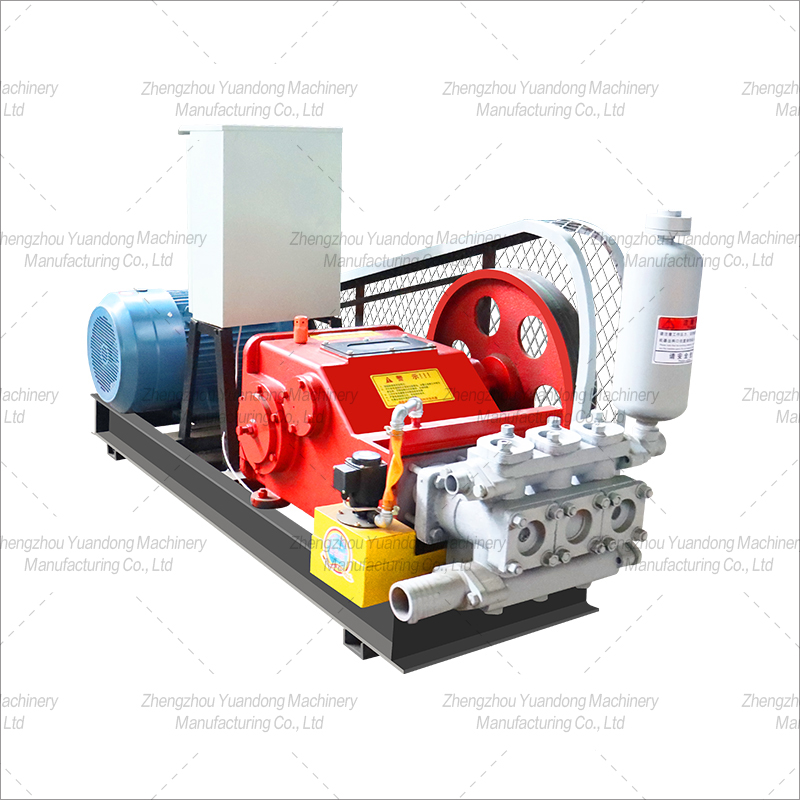

BW-300 three-cylinder two-speed grouting pump(圖3)

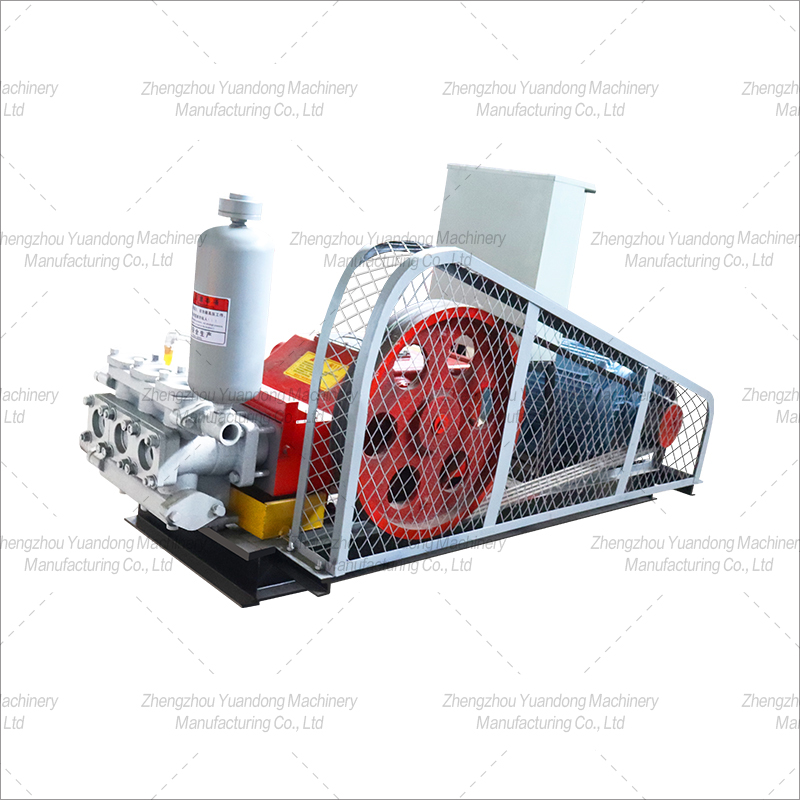

BW-300 three-cylinder two-speed grouting pump(圖4)

BW-300 three-cylinder two-speed grouting pump(圖5)
