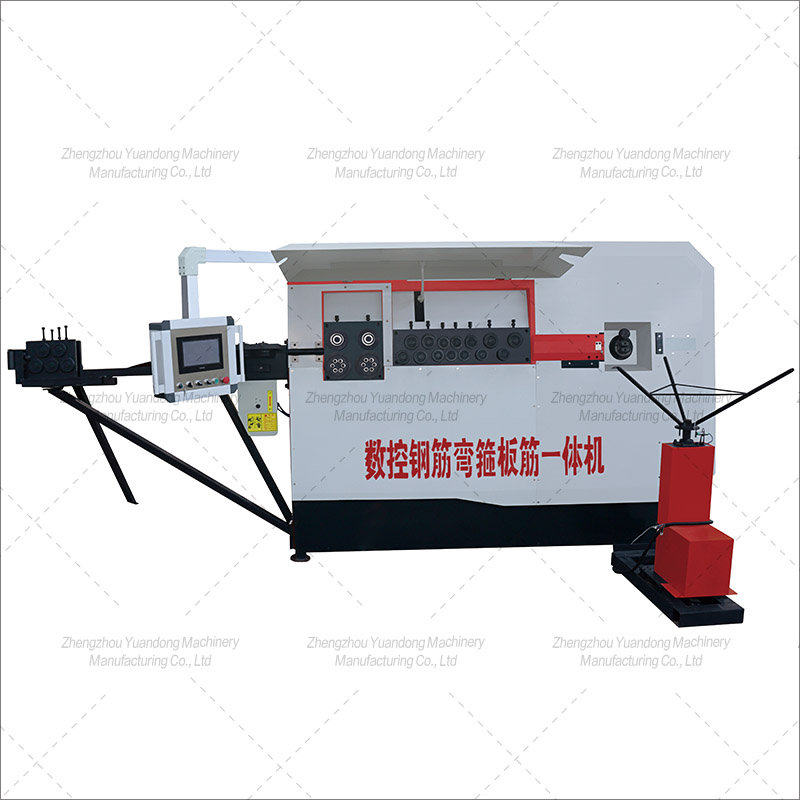

RM-12B type steel bar straightening and bending hoop all-in-one machine

The machine is suitable for steel distribution centers, construction sites, PC factories, high-speed rail, high-speed, nuclear power, civil construction and other construction fields. It can process up to 16mm of wire rod and rebar, not only can process stirrups, but also can automatically process various long slabs. Servo-driven return bending can automatically set bar hooks of various lengths and angles. The mechanism is designed, the processing range is large, and the anti-twist correction mechanism is provided to ensure the accuracy and flatness of the finished product. One machine has multiple functions, and is widely used in steel bar processing and distribution factories. A multifunctional hoop bending machine for fully CNC automatic processing of various stirrups and long plate bars. The function switching of plate bars and stirrups can be automatically and intelligently switched by numerical control within 2 seconds, without any manual adjustment. Large-scale structural design, large processing range, the width of the processing plate rib hook can reach 1 meter, the maximum plate rib length can reach 12m, and the maximum stirrup side length can reach 2350mm. 1. The disc-type two-stage telescopic bending mechanism has high return bending efficiency and stable operation. 2. The telescopic material receiving mechanism avoids the steel bar from popping out, and the work is reliable and the noise is low. 3. Flip-plate type two-stage material receiving, which is convenient for the collection and arrangement of finished products. 4. It has a torsion correction mechanism, which can ensure the flatness of the finished bar. 5. The design of the four-wheel servo-driven return mechanism realizes multi-step return bending and ensures the return accuracy of ±1mm.
