vertical flat mixer

Flat mixer is a new type of concrete mixer, suitable for general highways, power stations, dam construction, construction sites, roads, bridges, hydropower, and large and medium-sized prefabricated plants and other projects, with stable operation, low energy consumption, compact structure, reliable transmission , Important light, high production efficiency advantages, can mix plastic, dry, fluid concrete and lightweight aggregate and mortar, dry powder, sand, mortar, concrete, feed and so on. 1. The design of the whole machine is reasonable and the performance is optimized; 2. Easy to use and maintain; 3, firm and reliable, long life; 4. Good mixing quality and high efficiency; 5. Easy to operate and fast unloading; 6. Low energy consumption and low noise.


Product numberJW350 Flat Mouth MixerJW400 flat mouth mixerJW500 flat mouth mixerJW750 type half bridge flat mixerJW750 type full bridge flat mixerJW1000 type half bridge flat mixerJW1000 full bridge flat mixerJW2000 type full bridge flat mixerJW2000 Flat Mouth MixerJW3000 Flat Mouth Mixer
Motor Power4kw5.5kw7.5kw11kw/7.5kw grade 611kw/7.5kw grade 615kw/11kw grade 615kw/11kw grade 618.5kw11kw11kw
Overall size90*90*110cm110*110*110cm130*130*130cm150*150*130cm150*150*130cm180*180*130cm180*180*130cm200*200*160cm200*200*160cm220*220*160cm
Total Weight150kg230kg480kg520kg550kg620kg680kg750kg850kg850kg
Tank capacity0.25 cubic0.35 cubic0.5 cubic0.75 cubic0.75 cubic1 cubic1 cubic2 cubic2 cubic3 cubic
Tank size90*40cm110*40cm130*50cm150*50cm150*50cm180*50cm180*50cm200*80cm200*80cm200*80cm
gearboxflat caseflat caseHalf Bridge/Full Bridgehalf bridgefull bridgehalf bridgefull bridgefull bridgeFull bridge + main reducerFull bridge + main reducer
Product number3 cubic secondary stirring storage tank5 cubic secondary stirring storage tank6 cubic secondary stirring storage tank
Motor Power11kw11kw11kw
Overall size220*220*160cm250*250*190cm280*280*190cm
Total Weight1000kg1300kg1500kg
Tank capacity3 cubic5 cubic6 cubic
Tank size220*80cm250*100cm280*100cm
gearboxlarge flat boxlarge flat boxlarge flat box

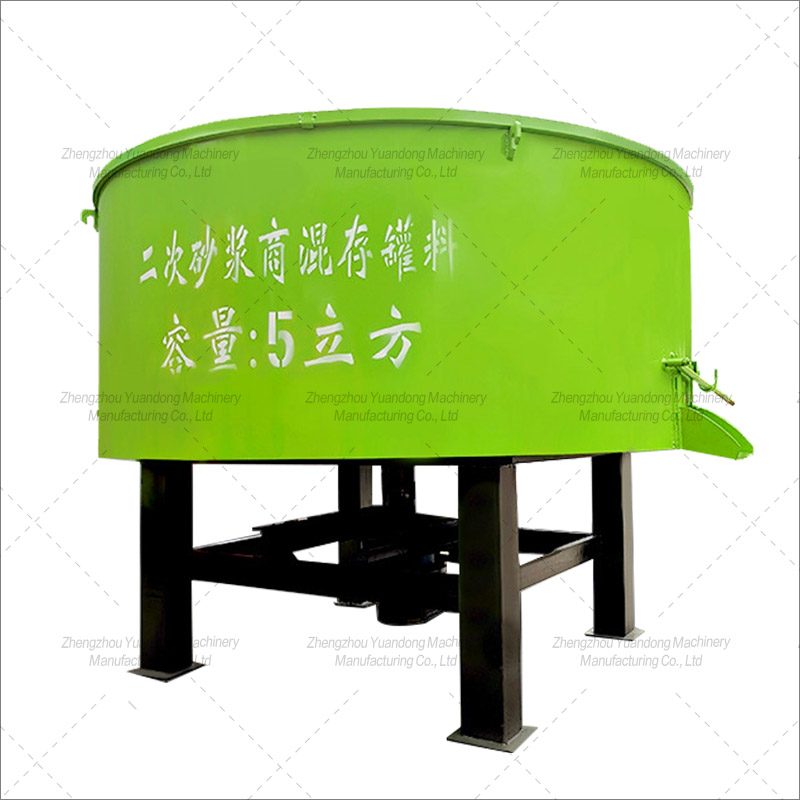

vertical flat mixer(圖1)

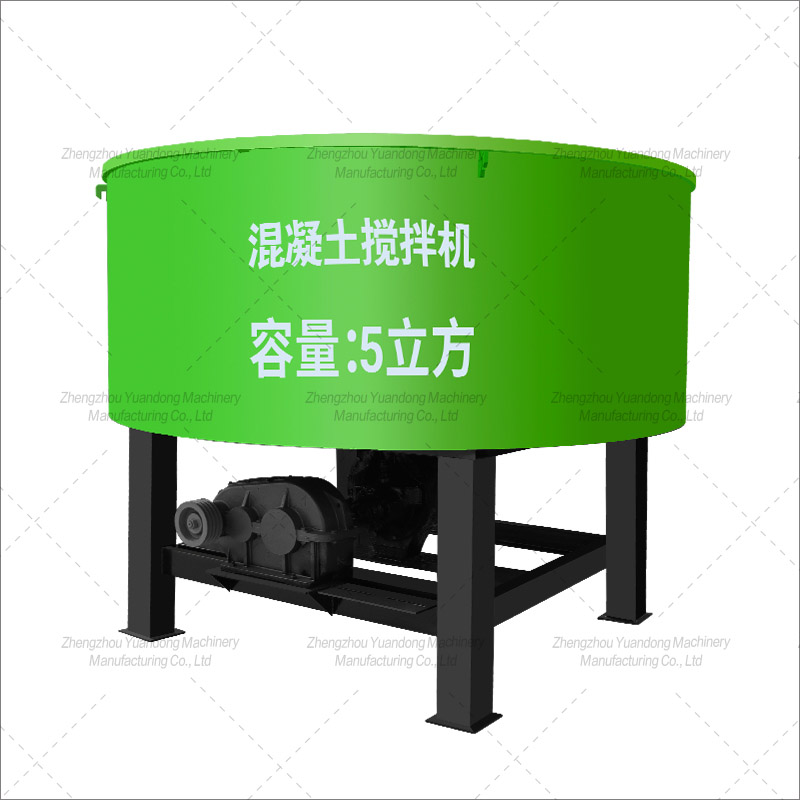

vertical flat mixer(圖2)

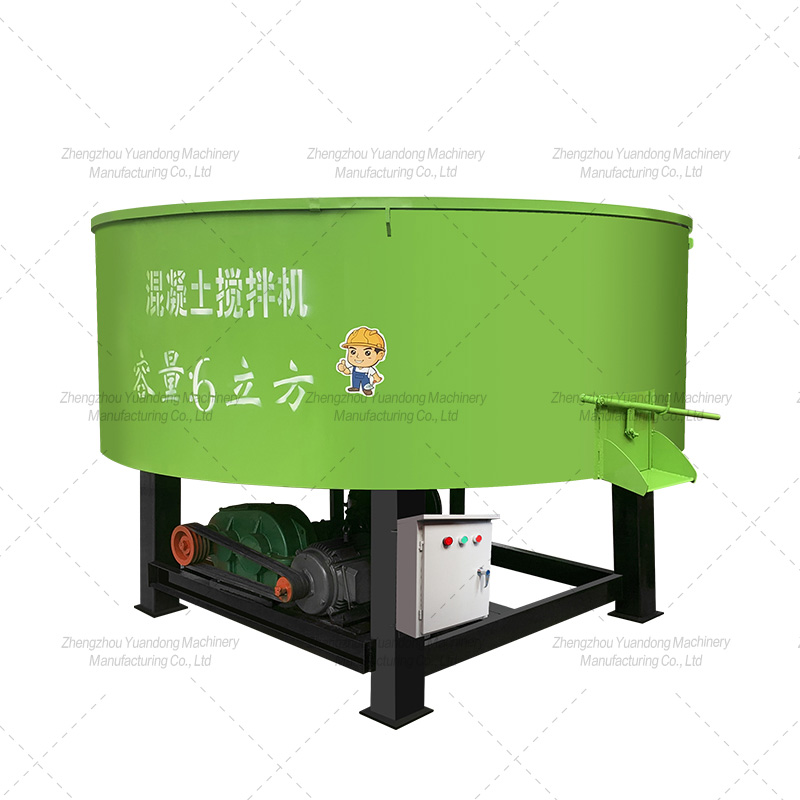

vertical flat mixer(圖3)

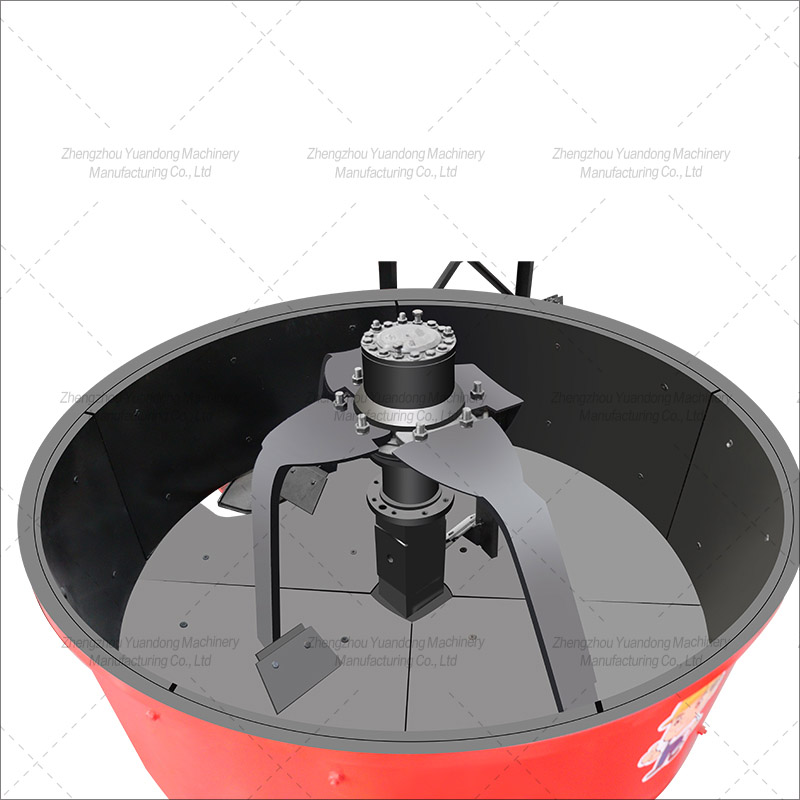

vertical flat mixer(圖4)

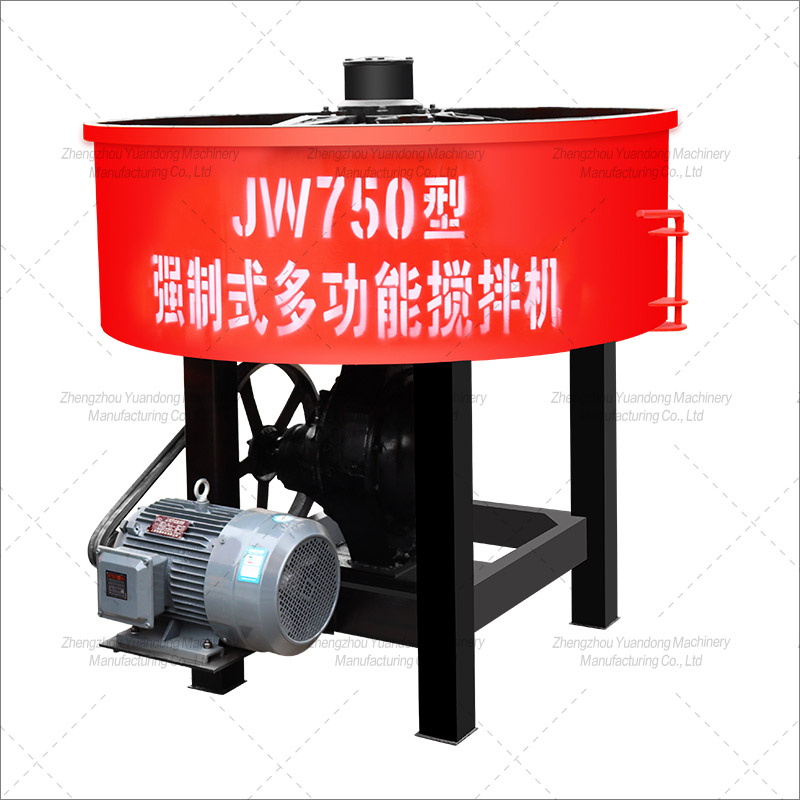

vertical flat mixer(圖5)
