Planetary hand-push reversible mixing tank

1. The stirring speed is about 24 rpm + the new design of the inclined stirring blade structure, the overall performance is greatly improved; 2. We pay more attention to details and improve the design of the bracket. After the bracket is shortened by 15CM and the included angle is reduced by 10°, it can be easily pushed away without stumbling; 3. (thickened steel plate) five times the durability, the track is thickened to 4MM, which is 1 times that of conventional products, and the motor fixing screw is increased from 6MM to 8MM


Product numberHand push 120LHand push 160LHand push 350L double wheel versionHand push 240LHand push 280L double wheel version
Motor Power2.5KW2.5KW2.8KW2.5KW2.8KW
Net weight/gross weight46-51KG53-56KG90-95KG70-73KG85-90KG
Stirring amount40KG75KG300KG150KG220KG
barrel thickness2mm2mm2.5mm2mm2.5mm
Overall width of the model61cm70cm79cm70cm69cm
barrel mouth ground clearance48cm48cm52cm53cm45cm
carton size73*58*4079*75*4994*78*8279*75*4995*68*71
Motor speedRPM1380-1400RPM1380-1400RPM1380-1400RPM1380-1400RPM1380-1400
Product numberHand push 350L ordinary versionHand push 350L double wheel versionHand push 350L gasoline engineHand Push 350L Cardan ShaftHand push 350L forward and reverseLow shelf automatic 350L forward and reverse
Motor Power2.8kw2.8KW4 stroke2.8KW4KW4KW
Net weight/gross weight90-95KG90-95KG95-100KG90-95KG95-100KG95-100KG
Stirring amount300KG300KG300KG300KG300KG300KG
barrel thickness2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm
Overall width of the model79cm79cm79cm79cm79cm79cm
barrel mouth ground clearance52cm52cm58cm58cm75cm42cm
carton size94*78*8294*78*8294*78*8294*78*8294*78*8294*78*82
Motor speedRPM1380-1400RPM1380-1400RPM1380-1400RPM1380-1400RPM1380-1400RPM1380-1400
Product numberHand push 500L four-wheel versionHand Push 500L Cardan ShaftHand push 500L forward and reverse
Motor Power2.8kw2.8KW4KW
Net weight/gross weight90-95KG90-100KG110-115KG
Stirring amount380KG380KG400KG
barrel thickness2.5mm2.5mm2.5mm
Overall width of the model79cm79cm79cm
barrel mouth ground clearance52cm58cm75cm
carton size99*78*9199*78*9199*78*101
Motor speedRPM1380-1400RPM1380-1400RPM1380-1400
Product numberHand push 280L forward and reverse
Motor Power4KW
Net weight/gross weight85-90KG
Stirring amount220KG
barrel thickness2.5mm
Overall width of the model79cm
barrel mouth ground clearance78cm
carton size104*68*71
Motor speedRPM1380-1400
Product numberHand push 400L forward and reverse
Motor Power4KW
Net weight/gross weight100-105KG
Stirring amount350KG
barrel thickness2.5mm
Overall width of the model79cm
barrel mouth ground clearance75cm
carton size99*78*91
Motor speedRPM1380-1400
Product numberAutomatic 600L forward and reverse
Motor Power4KW
Net weight/gross weight120-125KG
Stirring amount450KG
barrel thickness2.5mm
Overall width of the model79cm
barrel mouth ground clearance75cm
carton size99*78*101
Motor speedRPM1380-1400
Product numberAutomatic 800L forward and reverse
Motor Power4.5KW
Net weight/gross weight140-145KG
Stirring amount550KG
barrel thickness2.5mm
Overall width of the model79cm
barrel mouth ground clearance75cm
carton size99*78*115
Motor speedRPM1380-1400

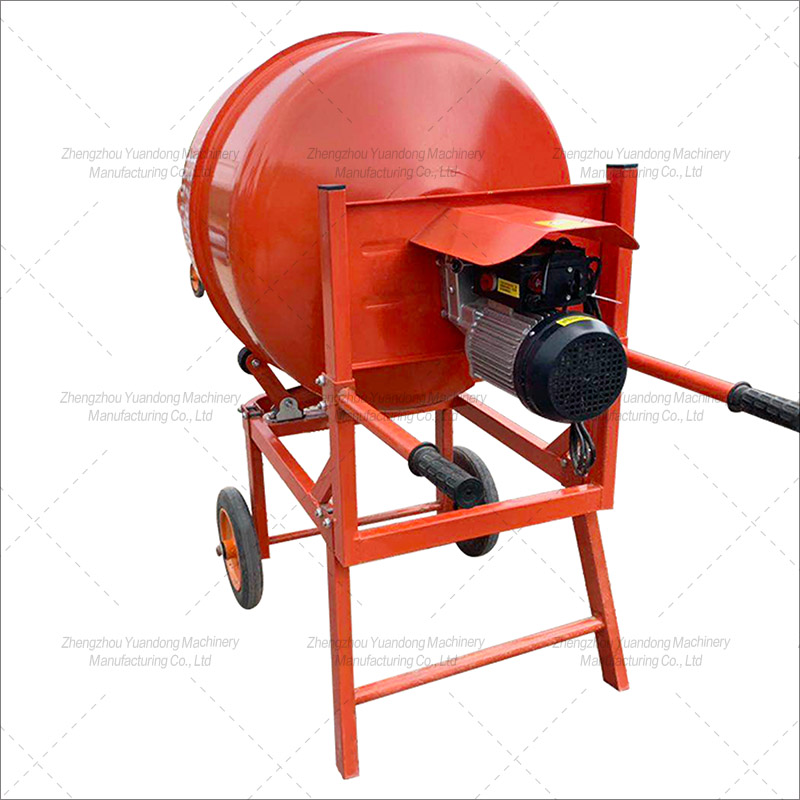

Planetary hand-push reversible mixing tank(圖1)

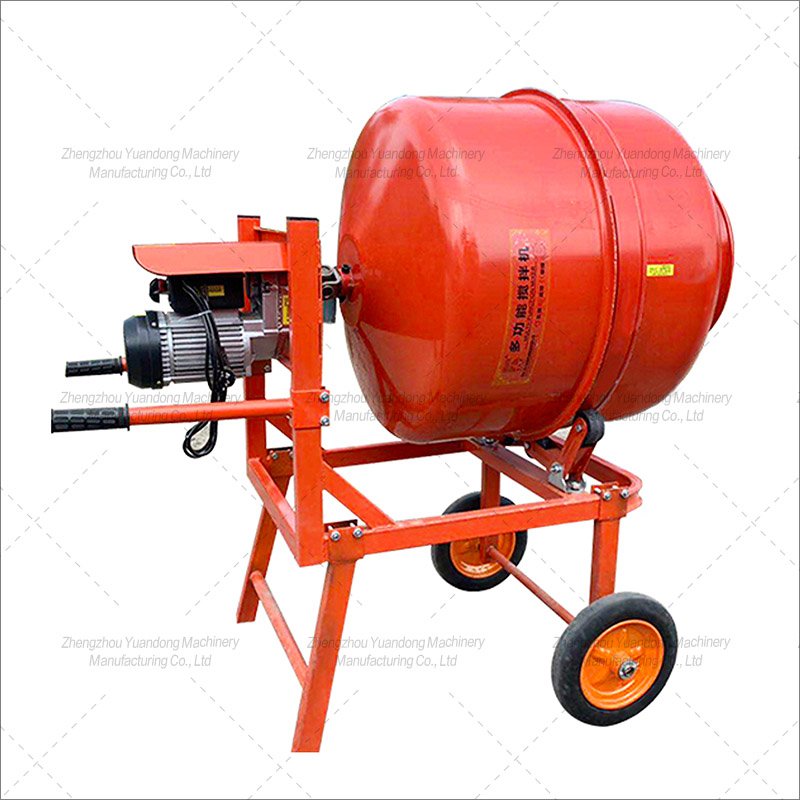

Planetary hand-push reversible mixing tank(圖2)

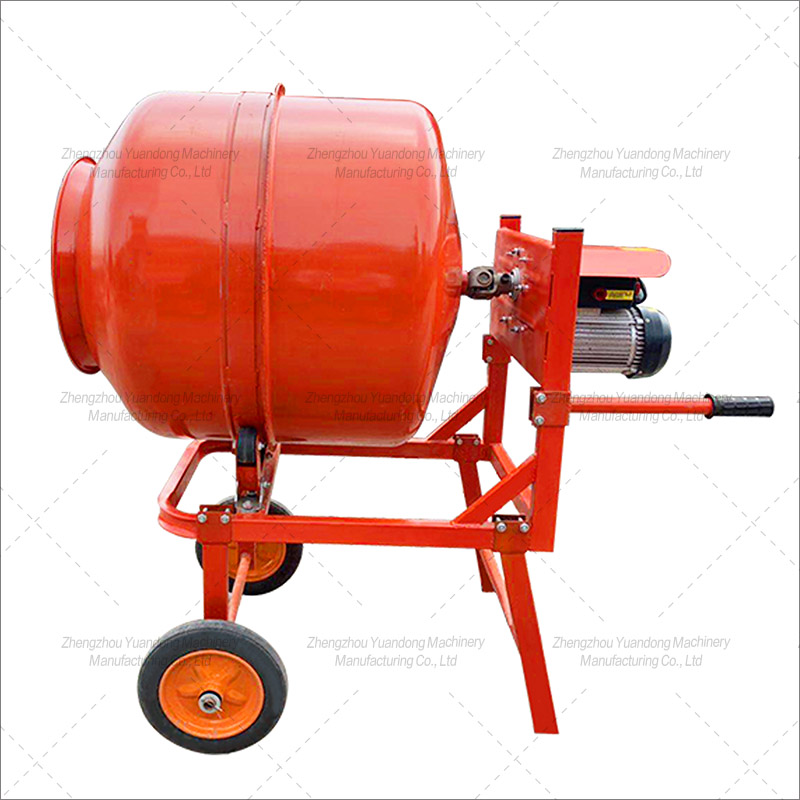

Planetary hand-push reversible mixing tank(圖3)

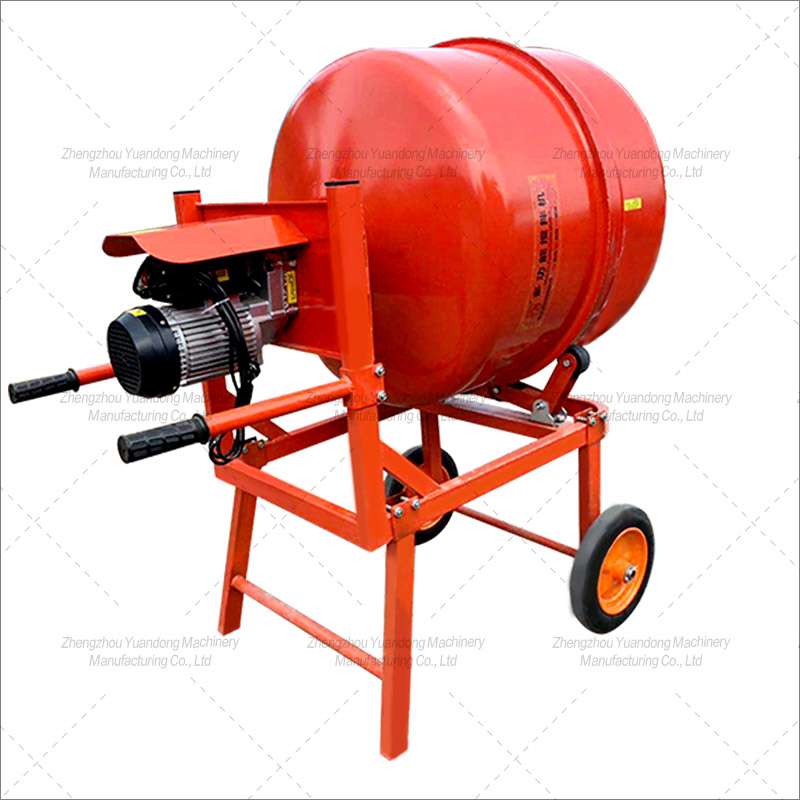

Planetary hand-push reversible mixing tank(圖4)

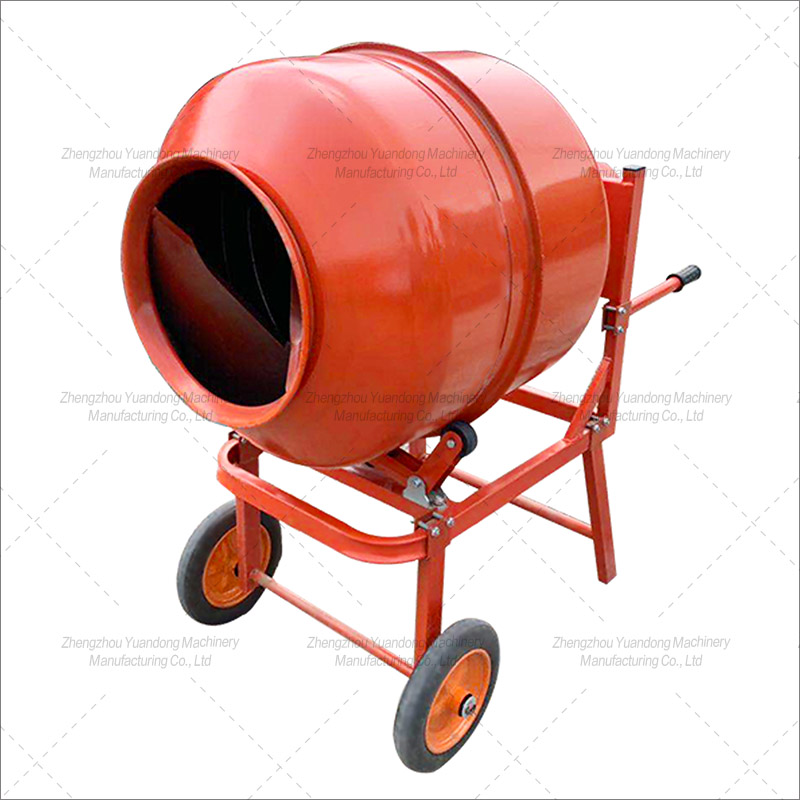

Planetary hand-push reversible mixing tank(圖5)
