vibrator

Small concrete vibrator

Concrete vibrator is an important tool used in on-site pouring construction of roads, bridges, tunnels, floor foundations and various concrete beams, columns and prefabricated components. It can be powered by small gasoline engines or motor vibrators, and is indispensable in various concrete on-site construction tool. Features of concrete vibrating rod machine 1. High work efficiency, faster and more convenient construction; 2. According to different construction scenarios, the appropriate power can be selected 3. It can be customized on demand, the spot is urgently sent, and the after-sales service is worry-free

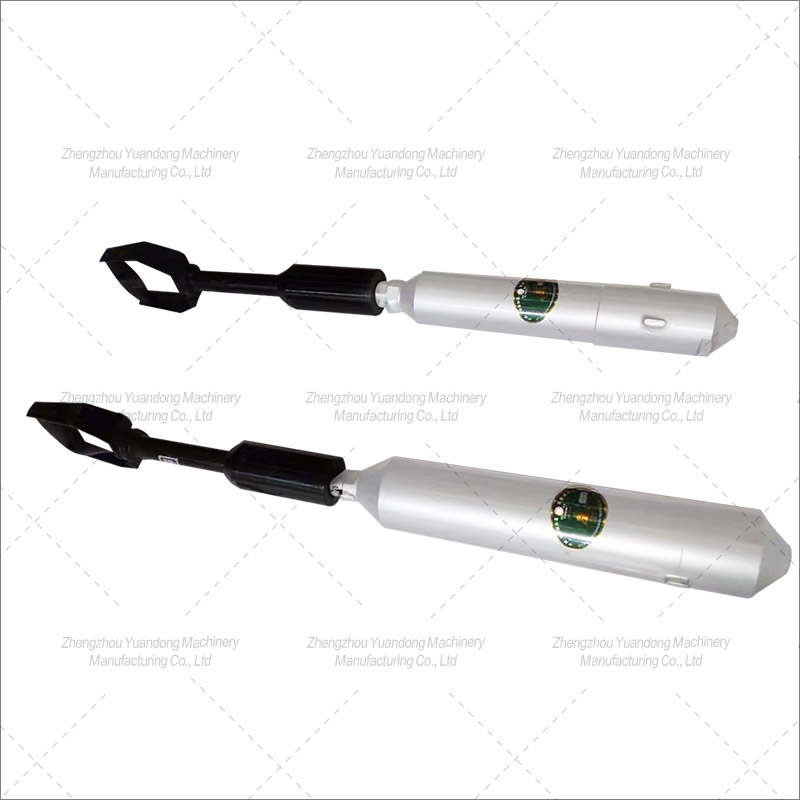

Product numberZDN-85 type vibratorZDN-100 Vibrator
diameter85mm100mm
Power frequency197148
No-load amplitude1.2MM1.6MM
length480mm515mm
Power frequency42v3-200HZ42v3-150HZ
power1KW1.85KW

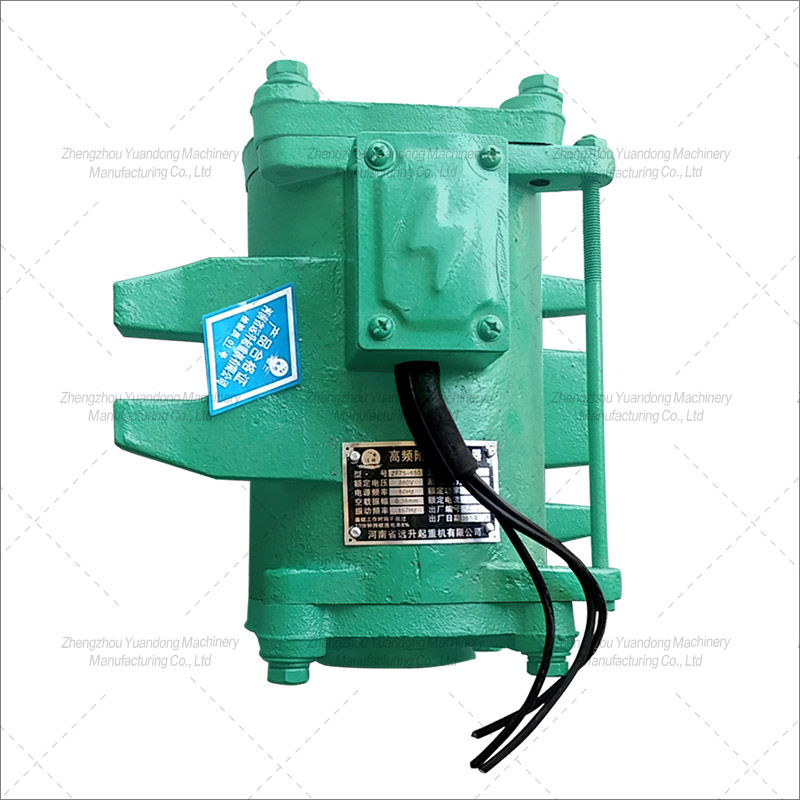

Product numberZF75-150
Rated voltage880V
Power frequency50Hz
No-load amplitude0.38MM
Exciting force8.7KN
rated power1.5KW
vibration frequency157Hz

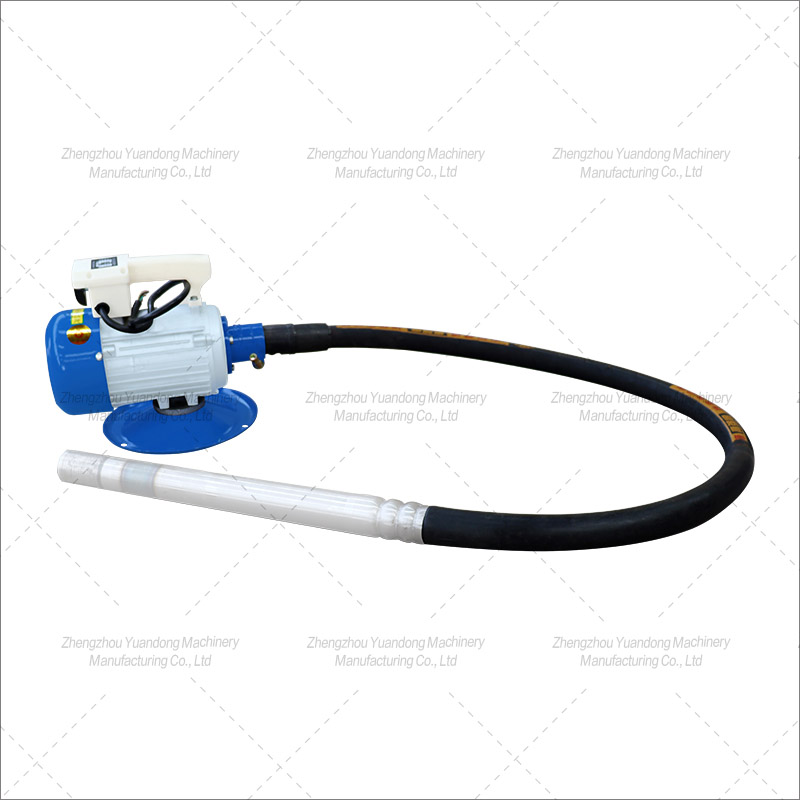

Product numberZN-70
Rated voltage380V
Power frequency50Hz
No-load amplitude1.2MM
Rated current3.24A
rated power1.5KW
Rated speed2840r/min

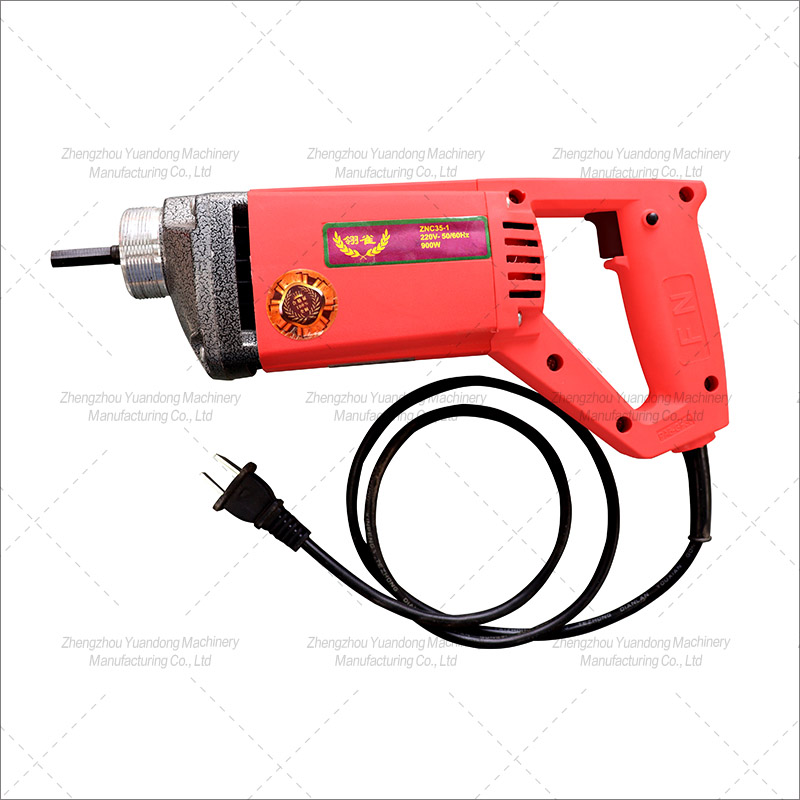

Product numberZNC35-5ZNC35-1
Rated voltage220V~50HZ220V~50/60HZ
Output Power1300W900W
No-load revolutions4300r/min4300r/min
Vibrator size1.0-4.0M1.0-4.0M

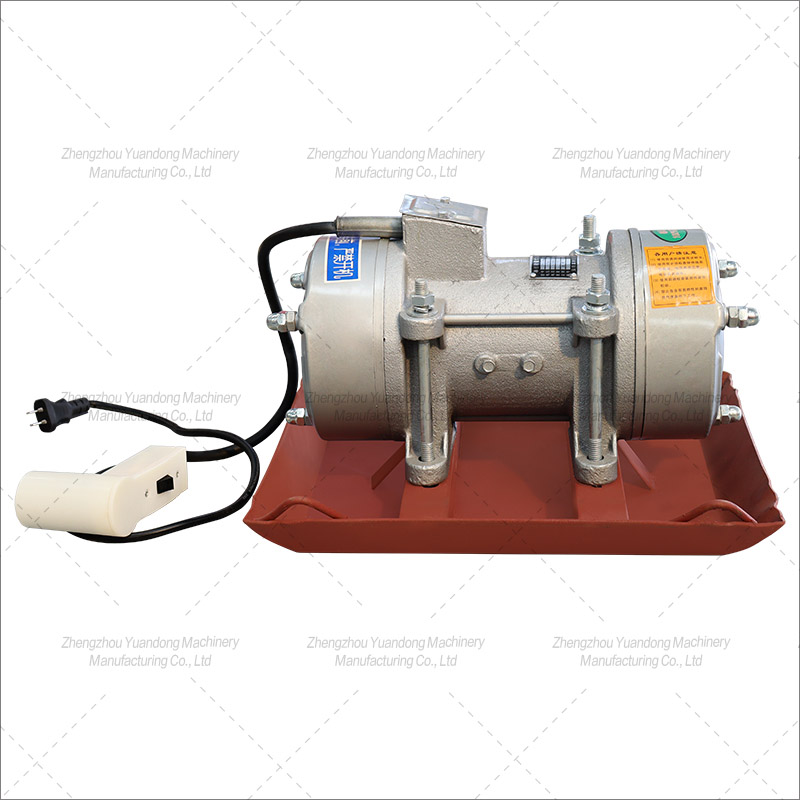

Product numberZW-7
Rated voltage220V
Power frequency50Hz
machine weight700KG
rated power1.5KW
vibration frequency2840 times/min
current3.24A
Product numberZGB-150 frequency conversion unitZGB-200 frequency conversion unit
capacity8.5KVA4.5KVA
input frequency50Hz50Hz
Output frequency150Hz200Hz
Input voltage380V380V
The output voltage45V48V
machine capacity108KG78KG

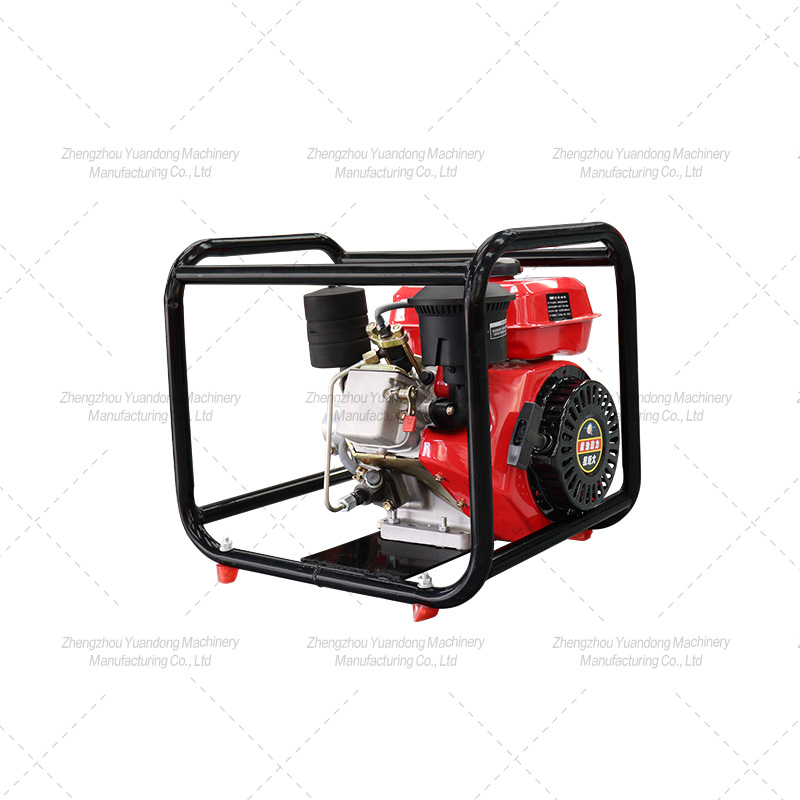

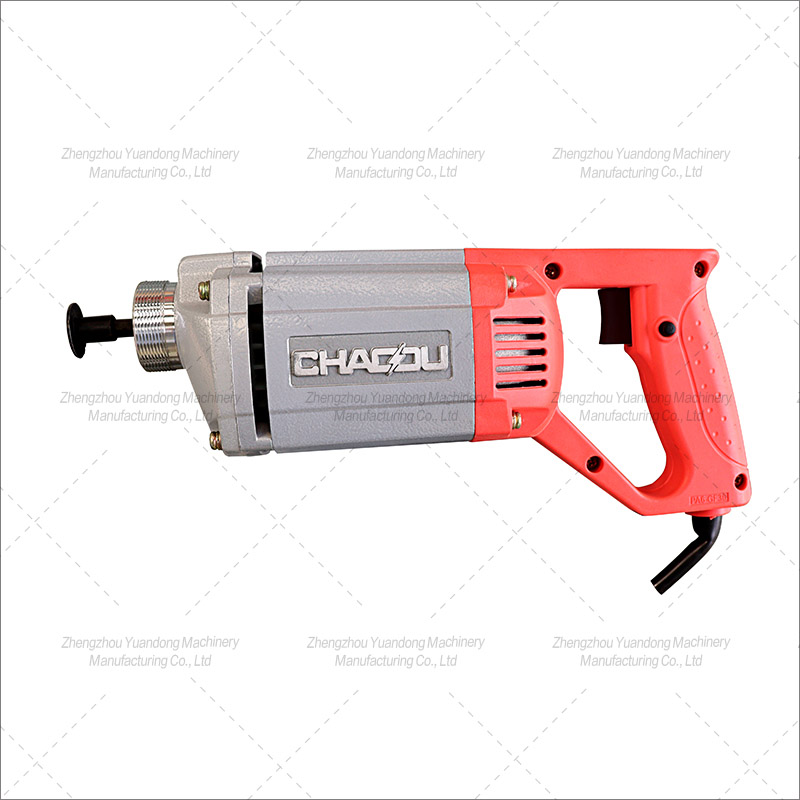

Small concrete vibrator(圖1)

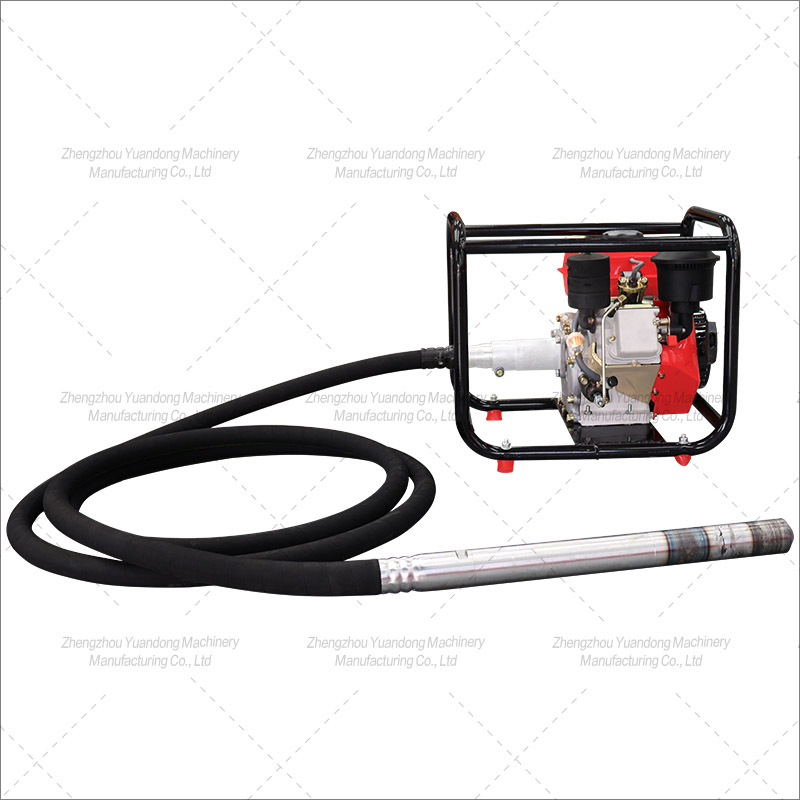

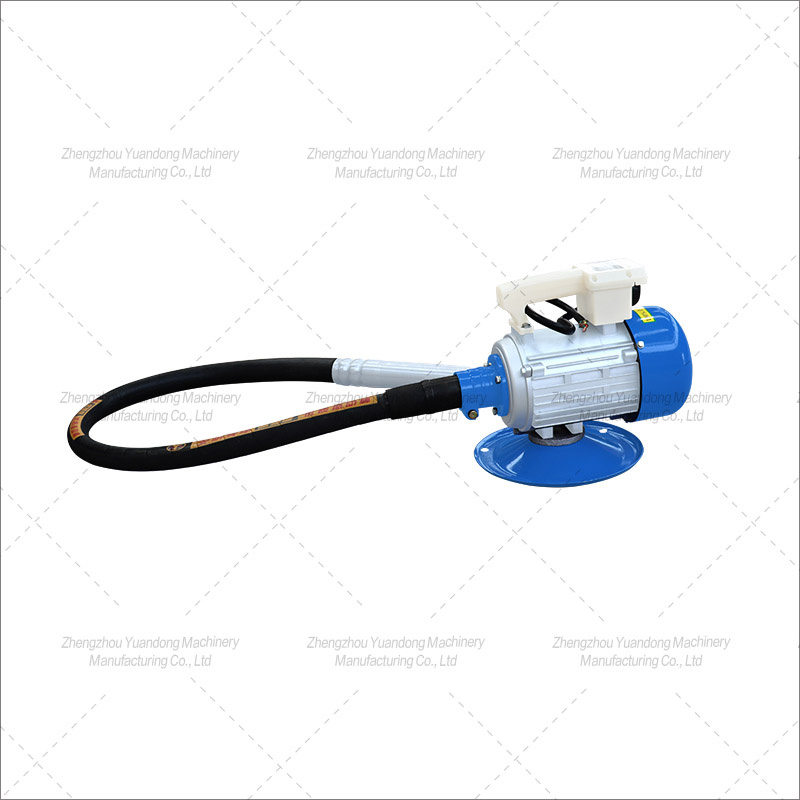

Small concrete vibrator(圖2)

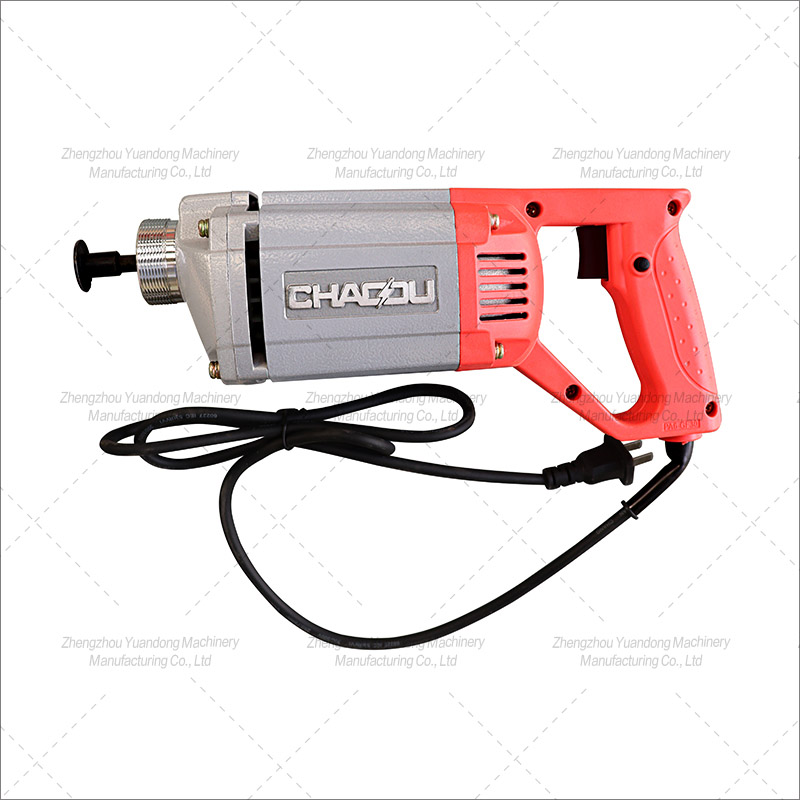

Small concrete vibrator(圖3)

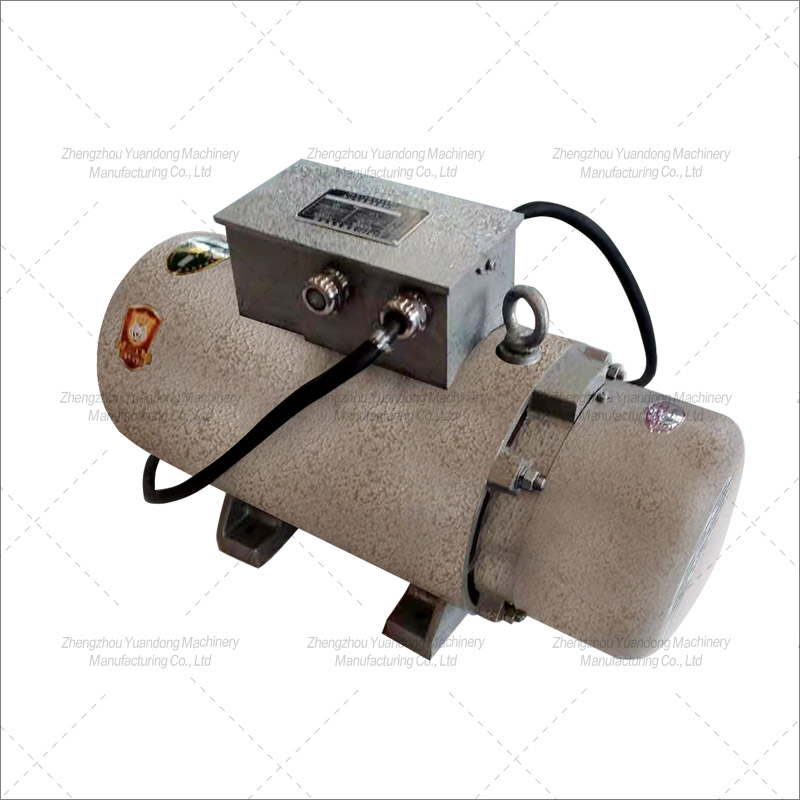

Small concrete vibrator(圖4)

Small concrete vibrator(圖5)

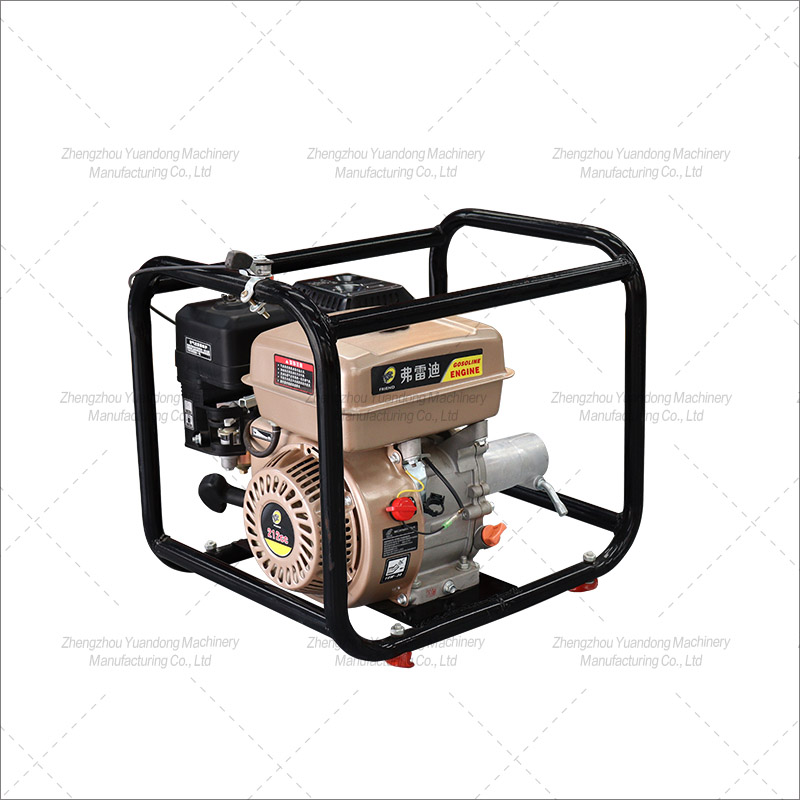

Small concrete vibrator(圖6)

Small concrete vibrator(圖7)

Small concrete vibrator(圖8)

Small concrete vibrator(圖9)

Small concrete vibrator(圖10)

Small concrete vibrator(圖11)

Small concrete vibrator(圖12)

Small concrete vibrator(圖13)
