Your location : Homepage > Product > Floor machinery > grinder
grinder

grinder

1. The machine includes a vacuum cleaner [one-piece type cannot be used separately], grinding and vacuuming are carried out synchronously, so as to achieve dust-free construction. 2. The machine is equipped with diamond cutters of different thicknesses, which can realize the grinding of all kinds of floors [such as hardened wear-resistant, terrazzo, emery floors, all kinds of concrete base surfaces, grinding, dressing and roughening]. It can also be used for thin-layer paint and epoxy. Grinding removal treatment. 3. The fine grinding tool can be finely ground for the surface of the floor. In addition, the intermediate layer of the epoxy floor can be leveled. 4. The low center of gravity design of the machine greatly improves the operating comfort and stability during high-load construction. 5. With a reverse steering switch, if the motor steering is found to be reversed, just toggle the switch to change the rotation direction of the motor. 6. With a leakage protector, the safety of the operator is greatly improved. 7. The fuselage is compact and flexible in operation, so it is not limited by the size of the construction site, and there is no dead angle between the fuselage and the wall during construction. 8. Imported motor, strong suction. Very low failure rate, 24 hours of continuous dust-free construction. This machine has a new infrared scanning device, which can automatically level. The bottom is equipped with an independent suspension level, no need for manual leveling, and the motor is a variable frequency motor to achieve automatic speed regulation.


Product numberXY-320D Ground Grinder
Length, width, (mm)740~200×450×910
Total weight (kg)110
Motor (kw)3.7KW×4P (imported Siemens motor)
Rated voltage, current (V.A)Three-phase AC 380V×8.1A
Grinding width (mm)300~320
Power Cord Specifications2M2×4 cores

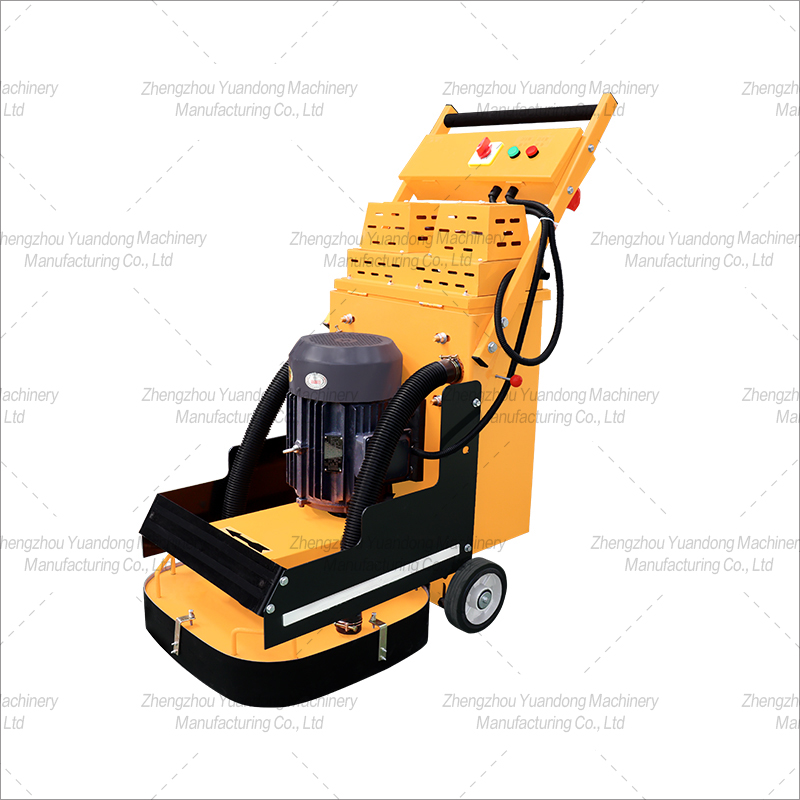

grinder(圖1)


Product number330 single-phase external vacuum grinding machine330 type three-phase external vacuum grinding machine350 single-phase external vacuum grinding machine350 type three-phase external vacuum grinding machine400 type single-phase external vacuum grinding machine400 type three-phase external vacuum grinding machine
Motor Power4kw4kw4kw4kw4kw4kw
Vacuuming power0.75kw0.75kw0.75kw0.75kw0.75kw0.75kw
Operating Voltage220V380V220V380V220V380V
working diameter330MM330MM350MM350MM400MM400MM
Motor typeCopper wire motorCopper wire motorCopper wire motorCopper wire motorCopper wire motorCopper wire motor
Disc speed750r/min750r/min750r/min750r/min750r/min750r/min
Number of discs3 pieces3 pieces3 pieces3 pieces5pieces5pieces
Total Weight145KG145KG155KG155KG160KG160KG

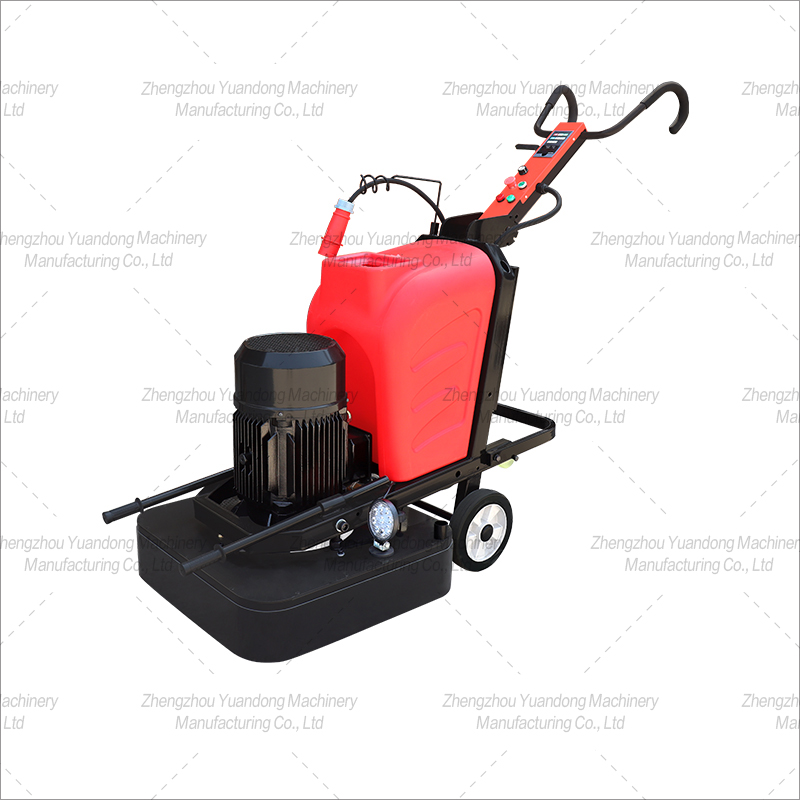

grinder(圖2)

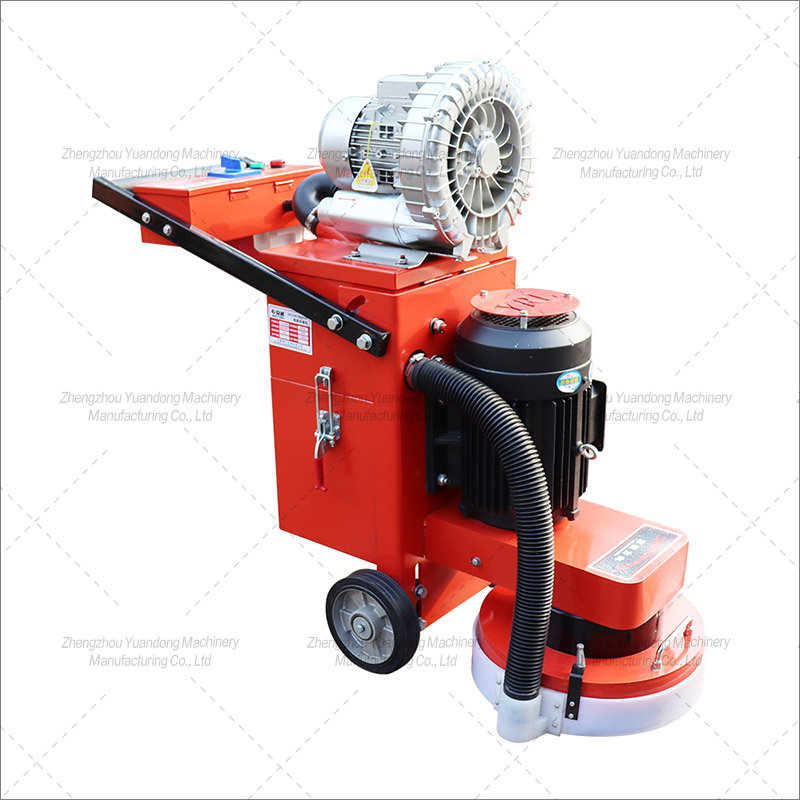

grinder(圖3)


Product numberModel 530 Built-in Vacuum Grinder
Motor Power7.5kw
Vacuuming power2.4kw
Operating Voltage380V
working diameter530MM
Motor typeCopper wire motor
  Disc speed750r/min
Number of discs9 pieces
Total Weight180KG

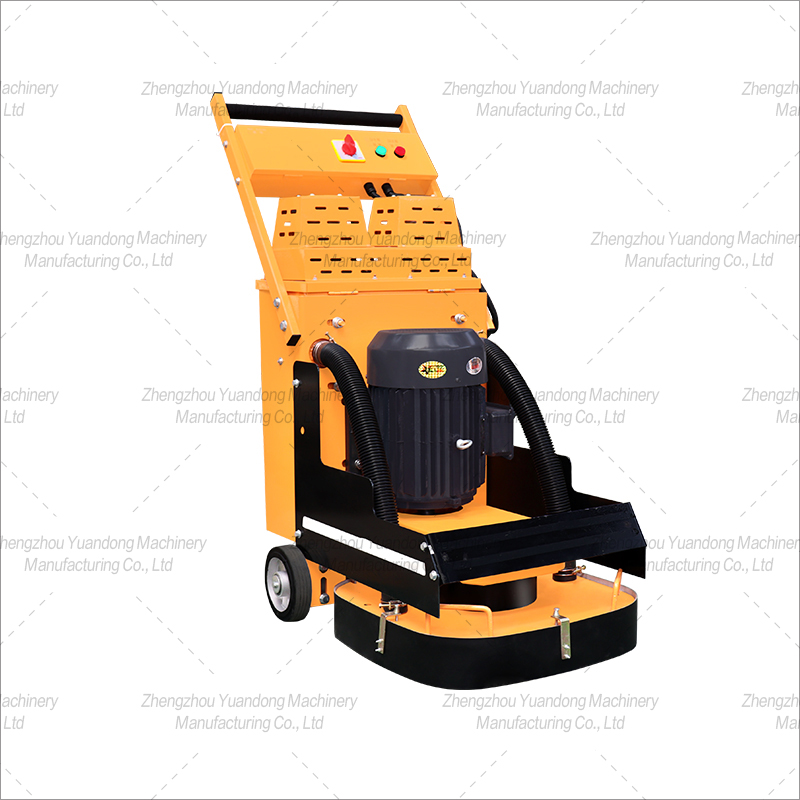

grinder(圖4)

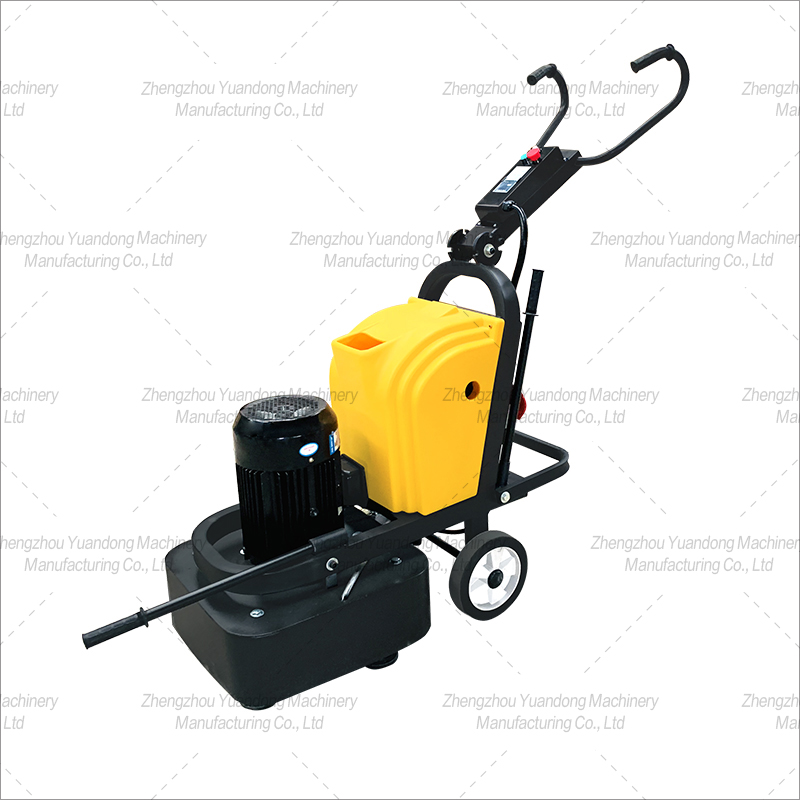

grinder(圖5)


Product numberModel 600 Vacuum GrinderModel 630 Vacuum Grinder
Motor Power7.5kw7.5kw
grinding speed40-100²/H40-100²/H
Operating Voltage380V380V
working diameter600MM630MM
way of rotationfrequency conversionfrequency conversion
  Disc speed900r/min900r/min
Number of discs12 pieces12 pieces
Total Weight260KG310KG

grinder(圖6)


Product numberModel 700 Vacuum GrinderModel 720 Vacuum Grinder
Motor Power11/15kw11/15kw
grinding speed50-120²/H50-120²/H
Operating Voltage380V380V
working diameter700MM720MM
way of rotationfrequency conversionfrequency conversion
  Disc speed900r/min1500r/min
Number of discs12 pieces12 pieces
Total Weight350KG380KG

grinder(圖7)


Product numberExternal vacuum cleaner
Motor Power2kw
horsepower3P
Operating Voltage220V
machine weight52KG

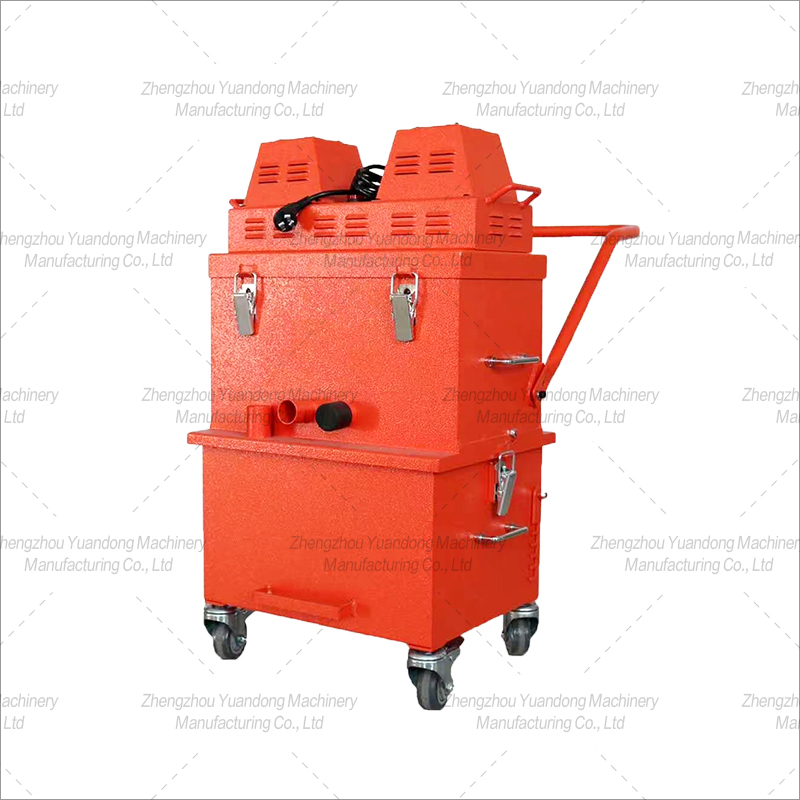

grinder(圖8)
