Secondary pouring pump

LL-15 Horizontal Concrete Pump

The secondary structural column pump is widely used in various construction projects, municipal engineering, tunnel engineering, mines, petrochemical engineering and agricultural water conservancy systems for compaction grouting, chemical grouting, foundation reinforcement, waterproofing and plugging, soil anchor construction, Rotary injection construction, drilling construction, tree root piles, double overflow grouting, thunder grouting, rotary injection piles, etc. The advantages of using the secondary structural column transfer pump: Optimized design of hopper, good suction performance and higher work efficiency Automatic centralized lubrication system to ensure effective lubrication during machine operation The humanized design of the product makes the operation more convenient and the maintenance easier Conveying of floor heating, thermal insulation lightweight foamed cement, mortar, small orthopedic concrete Conveying (spraying) of refractory and thermal insulation materials Conveying (jetting) of green soil in ecological environment construction Conveying (spraying) of plain concrete and fiber concrete in various engineering constructions Pressure grouting of various foundation piles


Product numberLL-15 standard horizontal concrete pumpLL-15 type high configuration horizontal concrete pump
Maximum particle diameter0.5-1.2cm0.5-1.2cm
Motor Power15kw15kw
theoretical delivery5-8m3/h5-8m3/h
stone diameter0.5-2cm0.5-2cm
Horizontal distance30m45-50m
vertical height15m25m
Dimensions140*70*110cm140*70*110cm
machine weight600kg600kg
Machine accessoriesTransparent hose 15mTransparent hose 10m
1 set of discharge clipsSteel pipe 10m
1 set of tools2 elbows
Hose connector 1 set1 set of discharge clips

1 set of tools

Hose connector 1 set

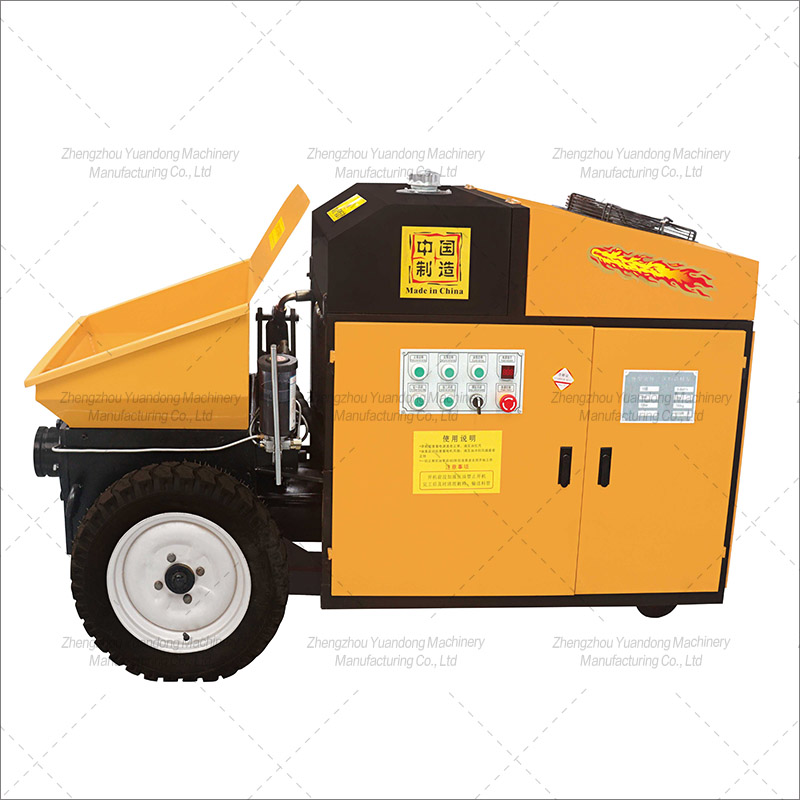

LL-15 Horizontal Concrete Pump(圖1)
